The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a standard size servos for standard voltage applications up to 6V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.
Features:
- Type: Digital
- Bearing: Dual
- Motor Type: DC

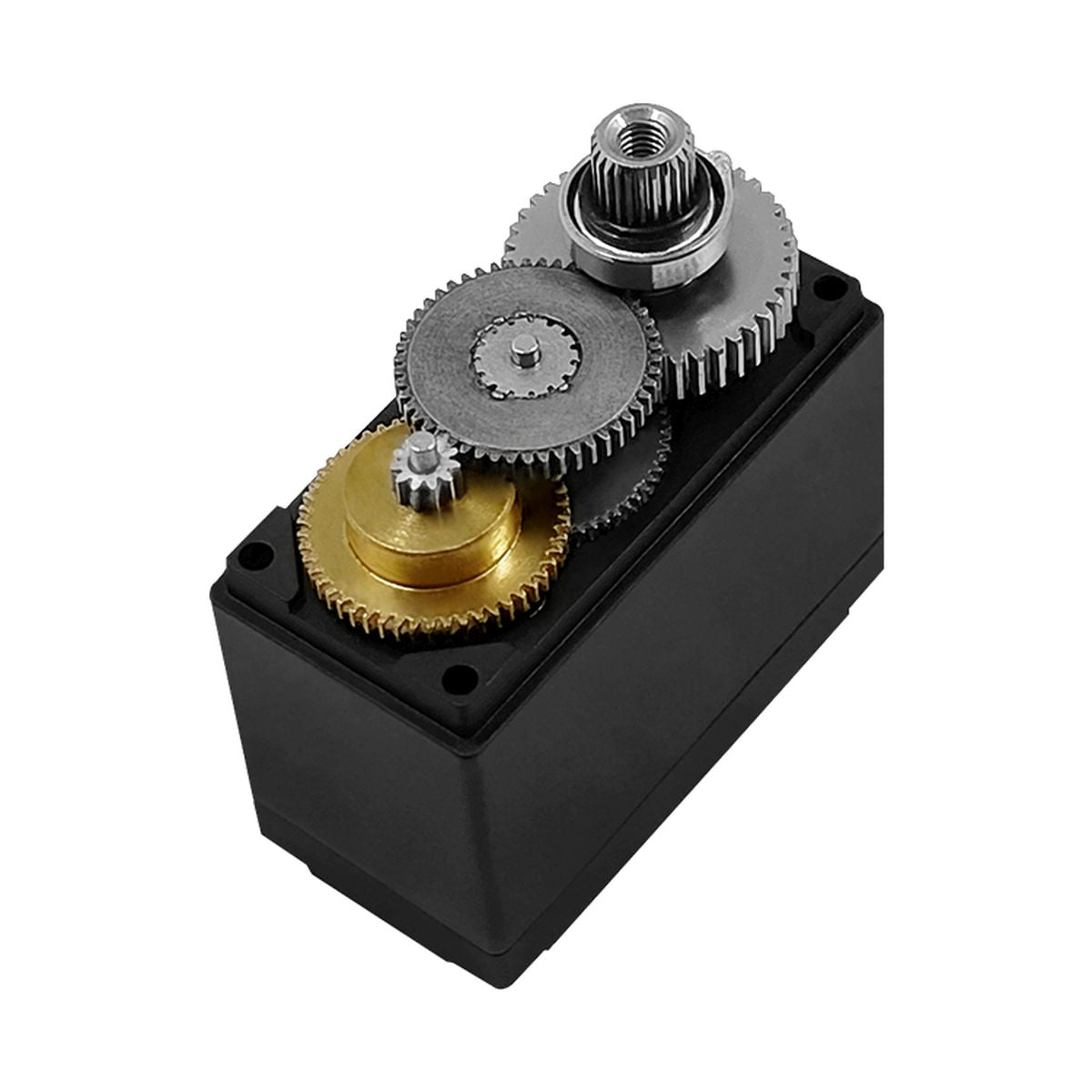

- Gear Type: Metal
- Gear Material: Copper & Aluminum
- control system: pulse width control
- Working Frequency: 1520Is / 330hz
- operating voltage: dc4.8-6.0v
- operating temperature range: -10 to + 60 degree
- operating speed (4.8v): 0.13 sec/60 degrees at no load
- operating speed (6.0v): 0.11 sec/60 degrees at no load
- stall torque (4.8v): 18.0kg.cm (250.0 oz/in)
- stall torque (6.0v): 20.0kg.cm (277.7 oz/in)
- potentiometer drive: direct drive

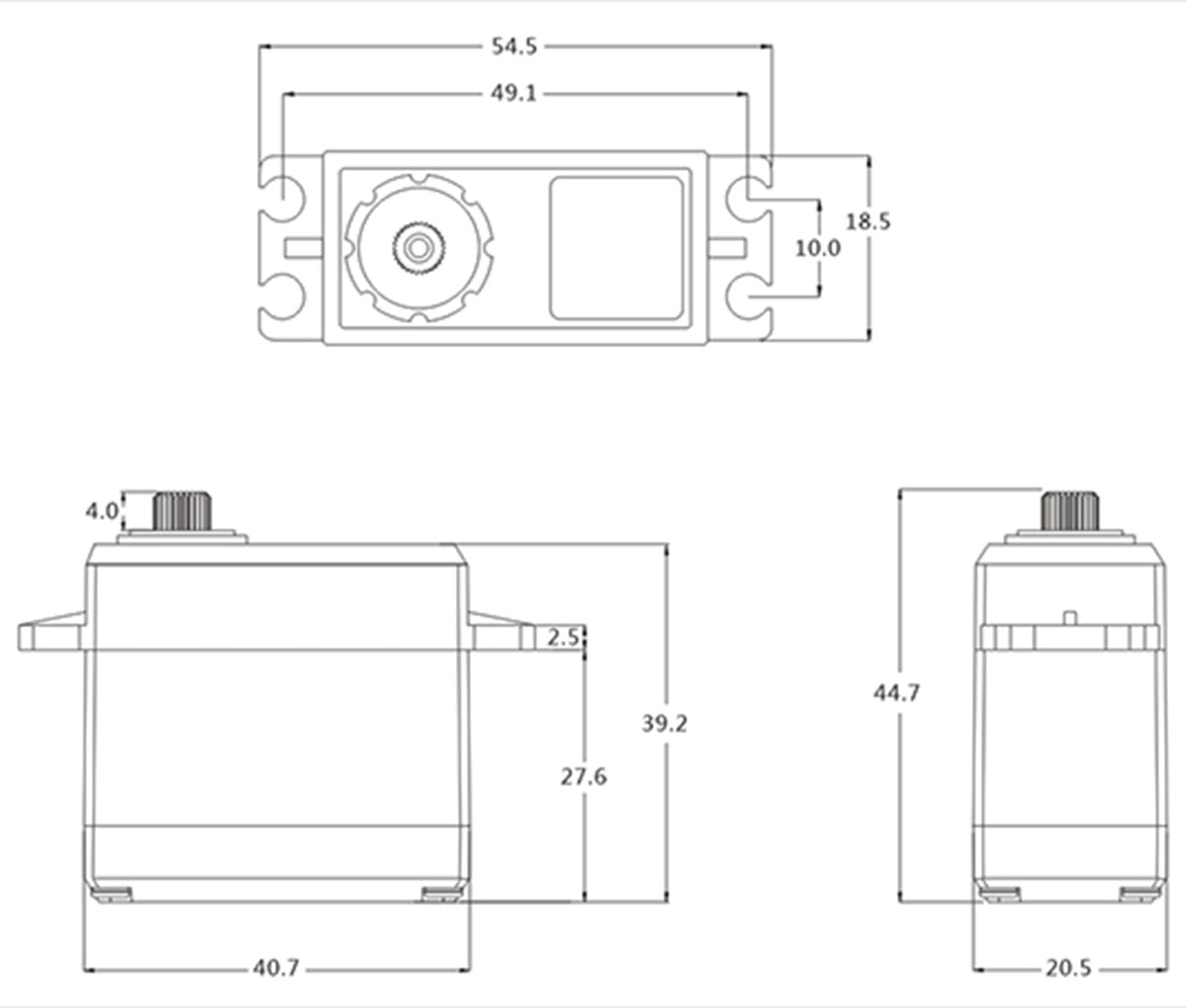

- dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
- weight: 56.0g (1.98 oz)
- connector wire length: jr 290 mm
