The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 6.0V.
Features:
- Ideal for 1/10 on road applications
- Incredible efficiency and low power consumption
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- Superior Holding Torque
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: DC

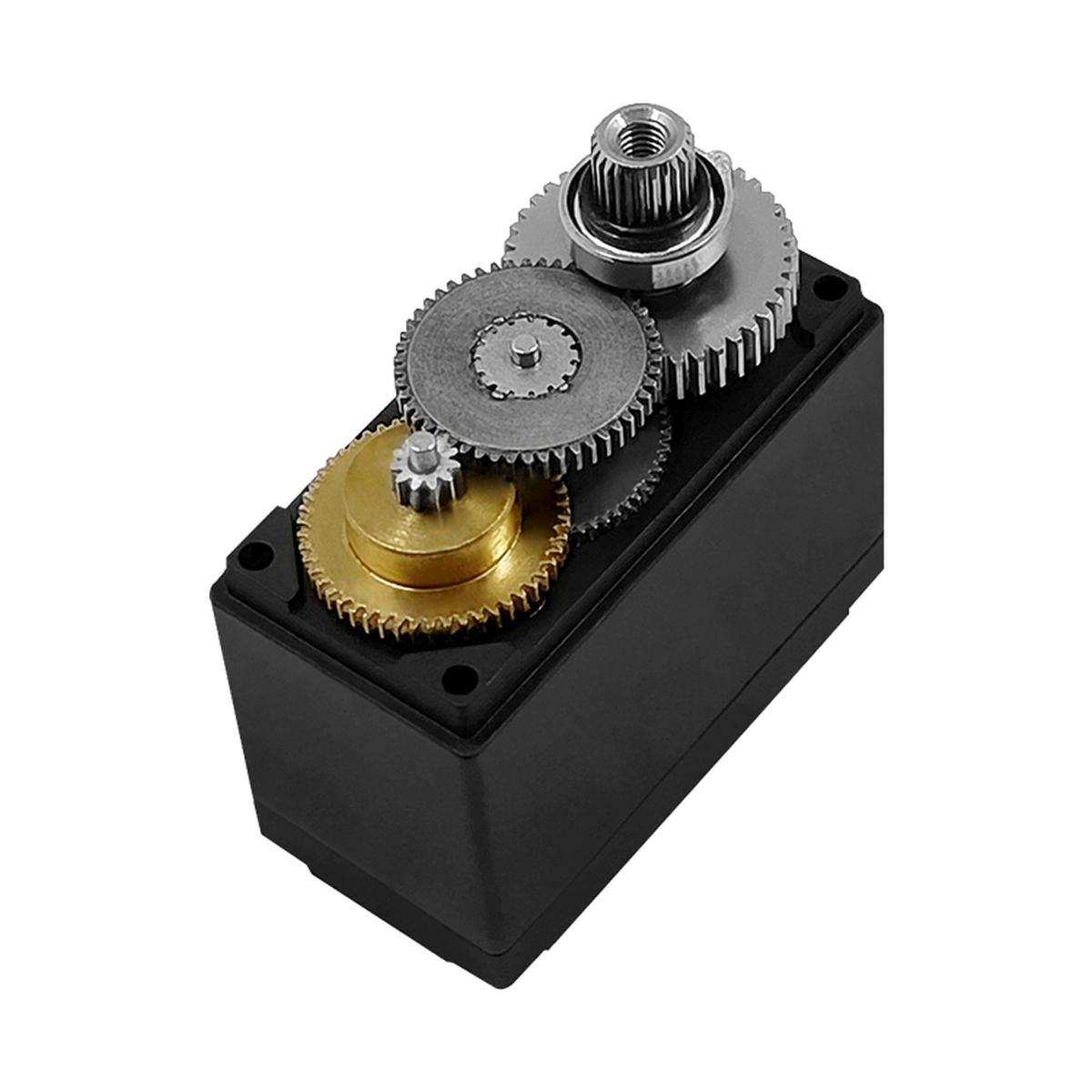

- Gear Type: Metal
- Gear Material: Copper & Aluminum
- Control System: Pulse Width Control
- Working Frequency: 1520Is / 330hz
- Operating Voltage: dc4.8-6.0v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (4.8v): 0.17 sec/60 degrees at no load
- Operating Speed (6.0v): 0.15 sec/60 degrees at no load
- Stall Torque (4.8v): 15.5kg.cm (215.3 oz/in)
- Stall Torque (6.0v): 17.0kg.cm (236.1 oz/in)
- Potentiometer Drive: Direct Drive

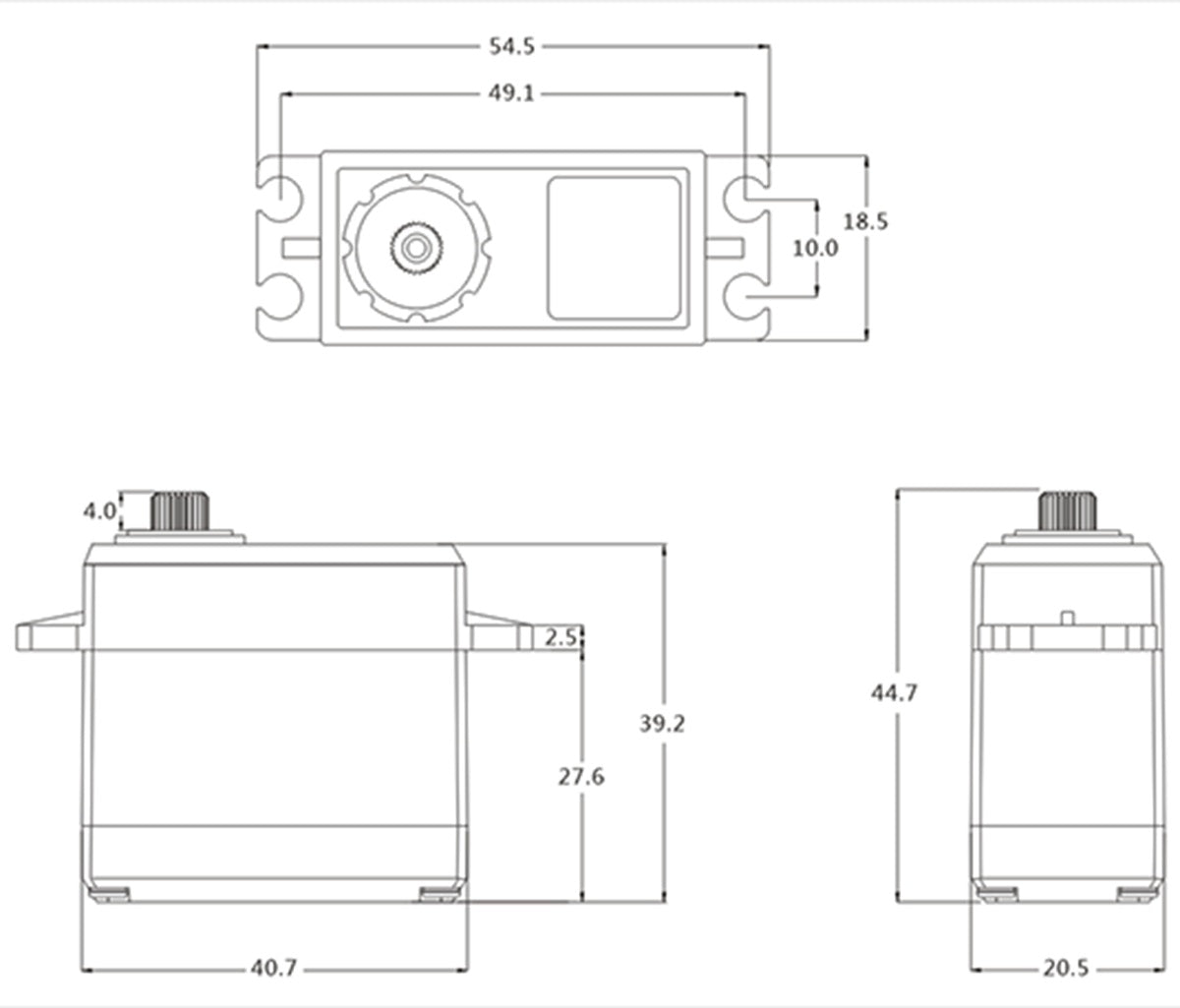

- Dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
- Weight: 56.0g (1.98 oz)
- Connector Wire Length: jr 290 mm
