The latest generation of SRT servos provides you with the performance you need for any vehicle application. They are standard size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.
Features:
- Ideal for 1/5 and 1/8 off road scale applications
- Incredible efficiency and low power consumption

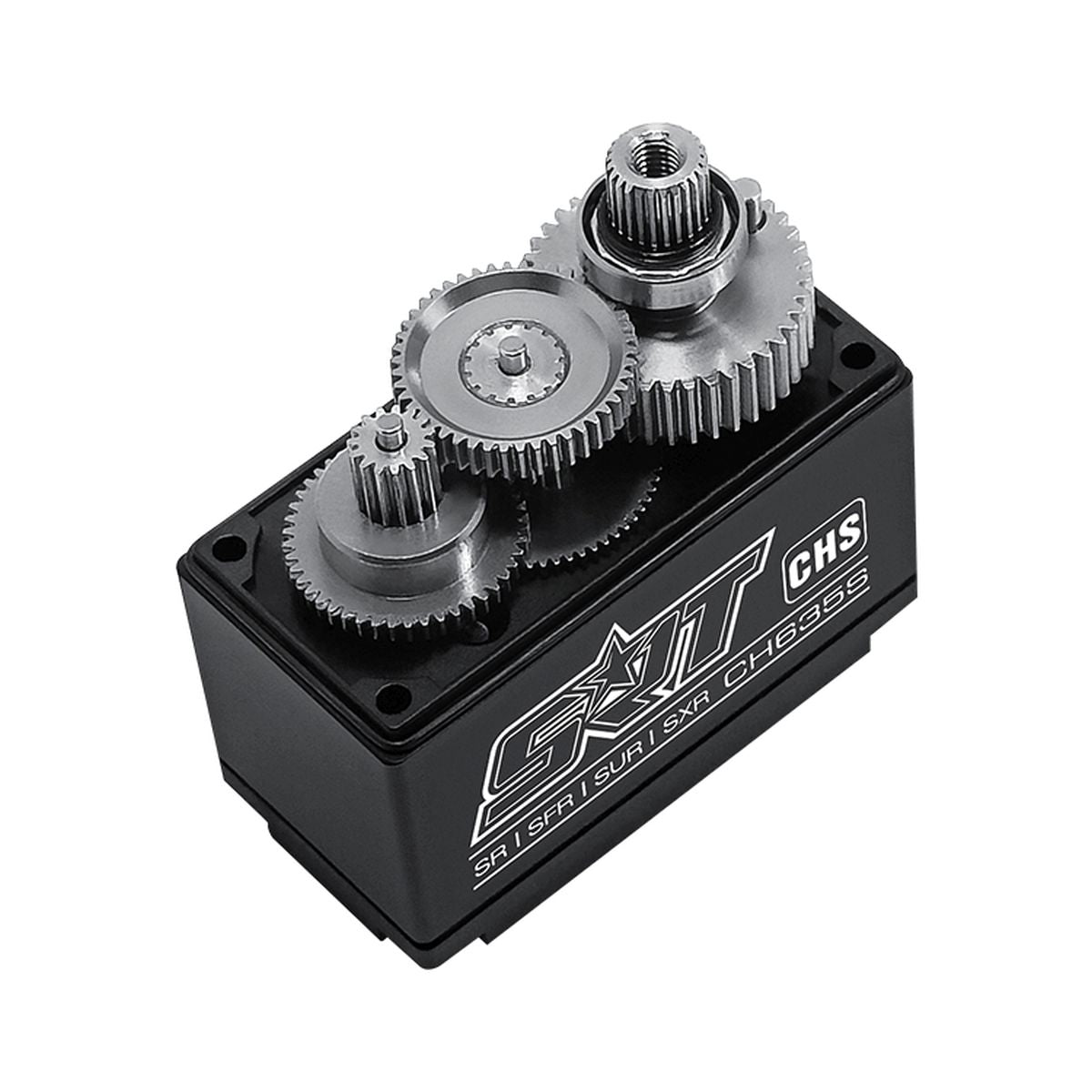

- Titanium & Steel gears for precision and durability
- Standard dimension make it perfect for vehicles that can benefit from a high quality servo
- Supporting SR, SFR, SUR, SXR multiple ultra high speed modes
- 2 usec Dead Band
- Superior Holding Torque
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Coreless
- Gear Type: Metal
- Gear Material: Titanium & Steel
- Control System: Pulse Width Control
- Working Frequency: 1520Is / 330hz
- Operating Voltage: dc6.0-8.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (6.0v): 0.16 sec/60 degrees at no load
- Operating Speed (7.4v): 0.15 sec/60 degrees at no load
- Operating Speed (8.4v): 0.14 sec/60 degrees at no load
- Stall Torque (6.0v): 30.0kg.cm (416.6 oz/in)
- Stall Torque (7.4v): 32.0kg.cm (444.4 oz/in)
- Stall Torque (8.4v): 35.0kg.cm (486.1 oz/in)
- Potentiometer Drive: Direct Drive

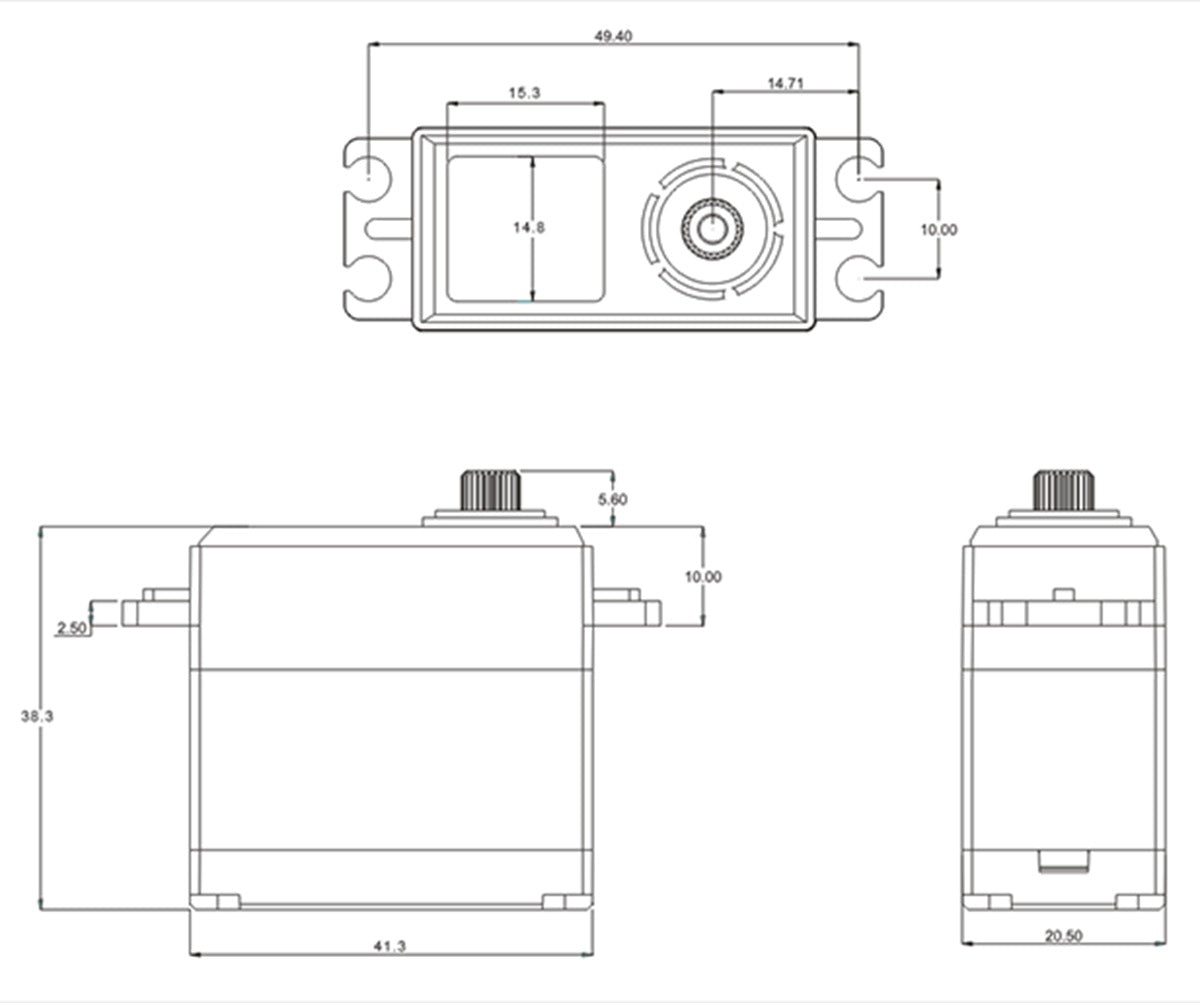

- Dimensions: 40.7x20.5x38.5 mm /1.6x0.8x1.51 in
- Weight: 75.0g (2.65 oz)
- Connector Wire Length: jr 250 mm
