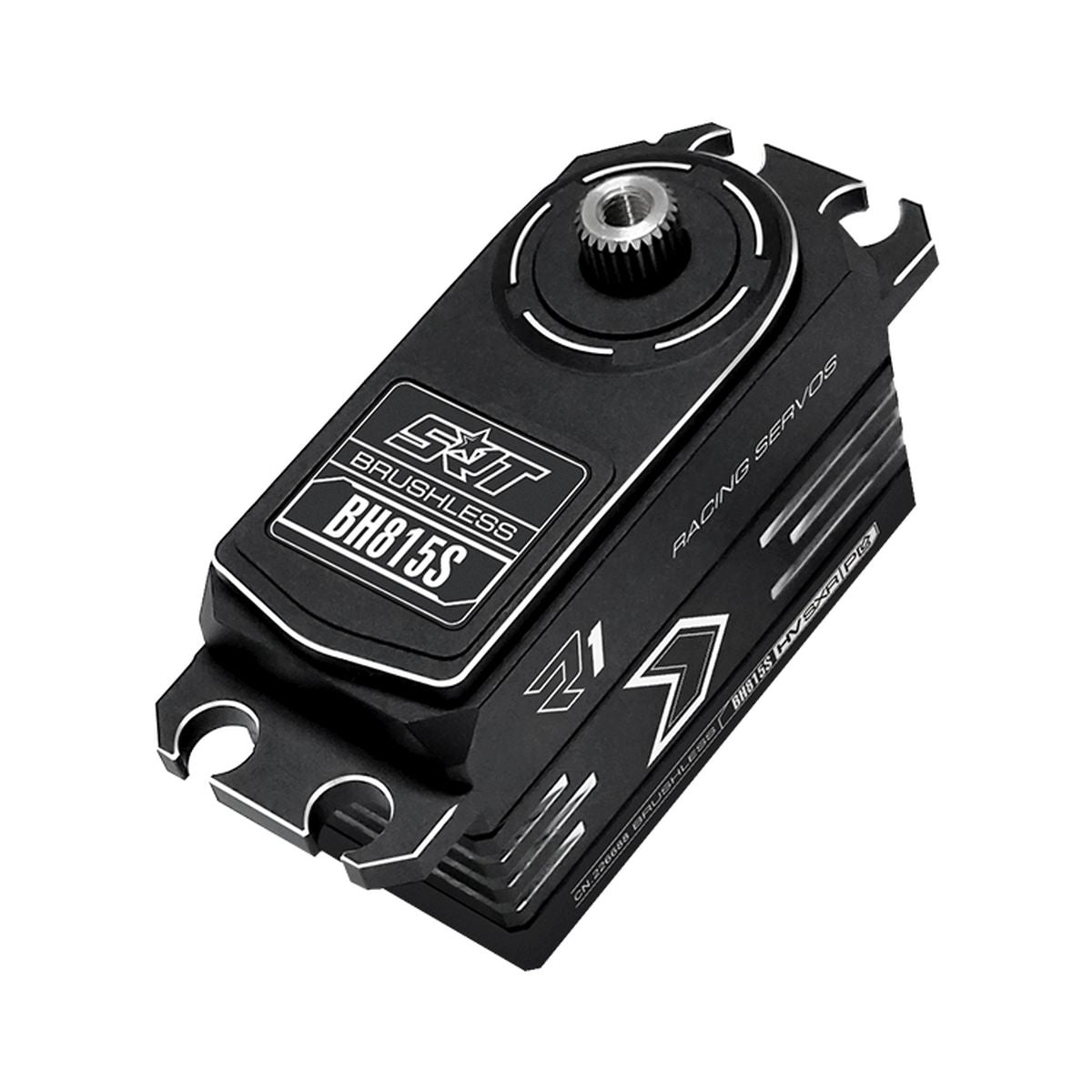

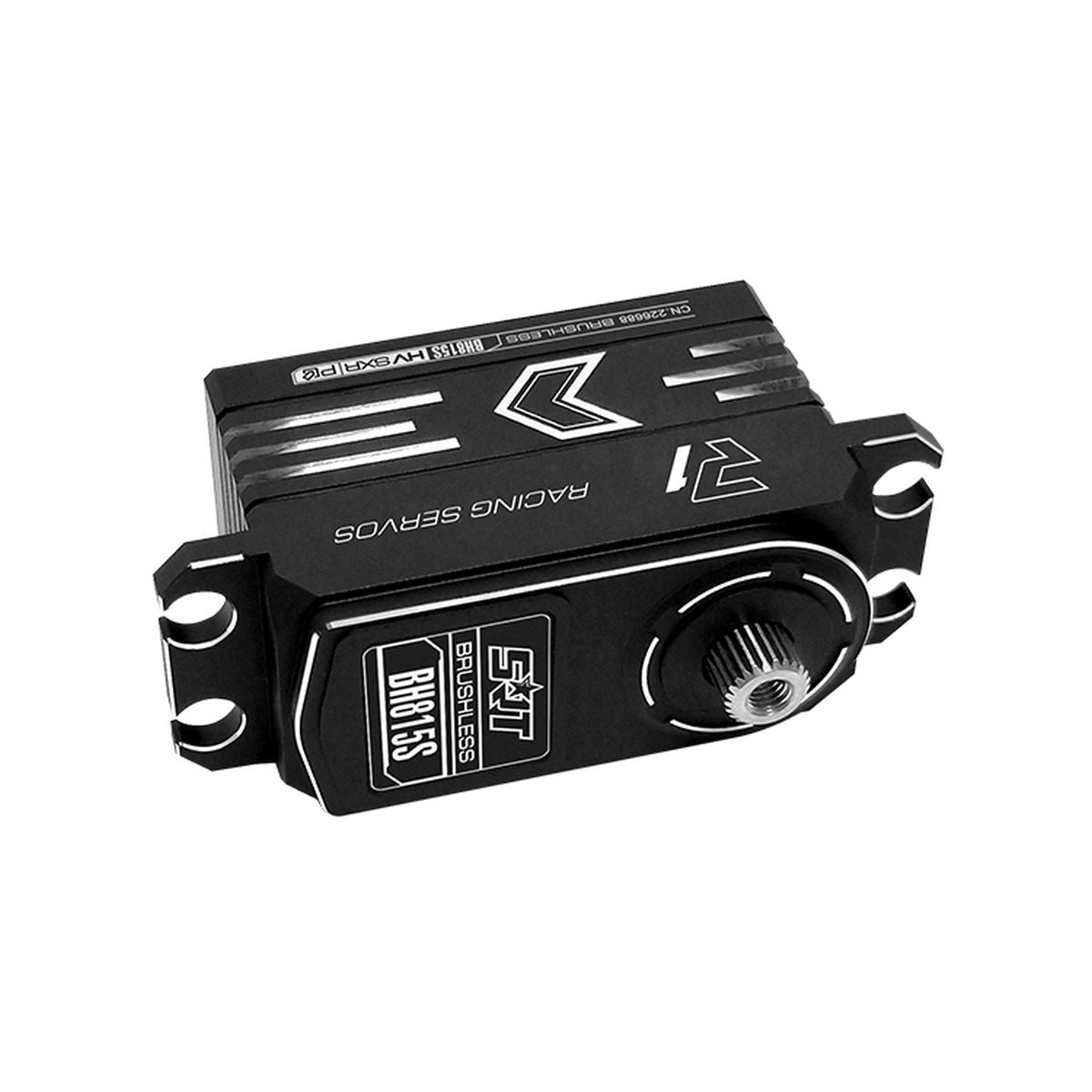

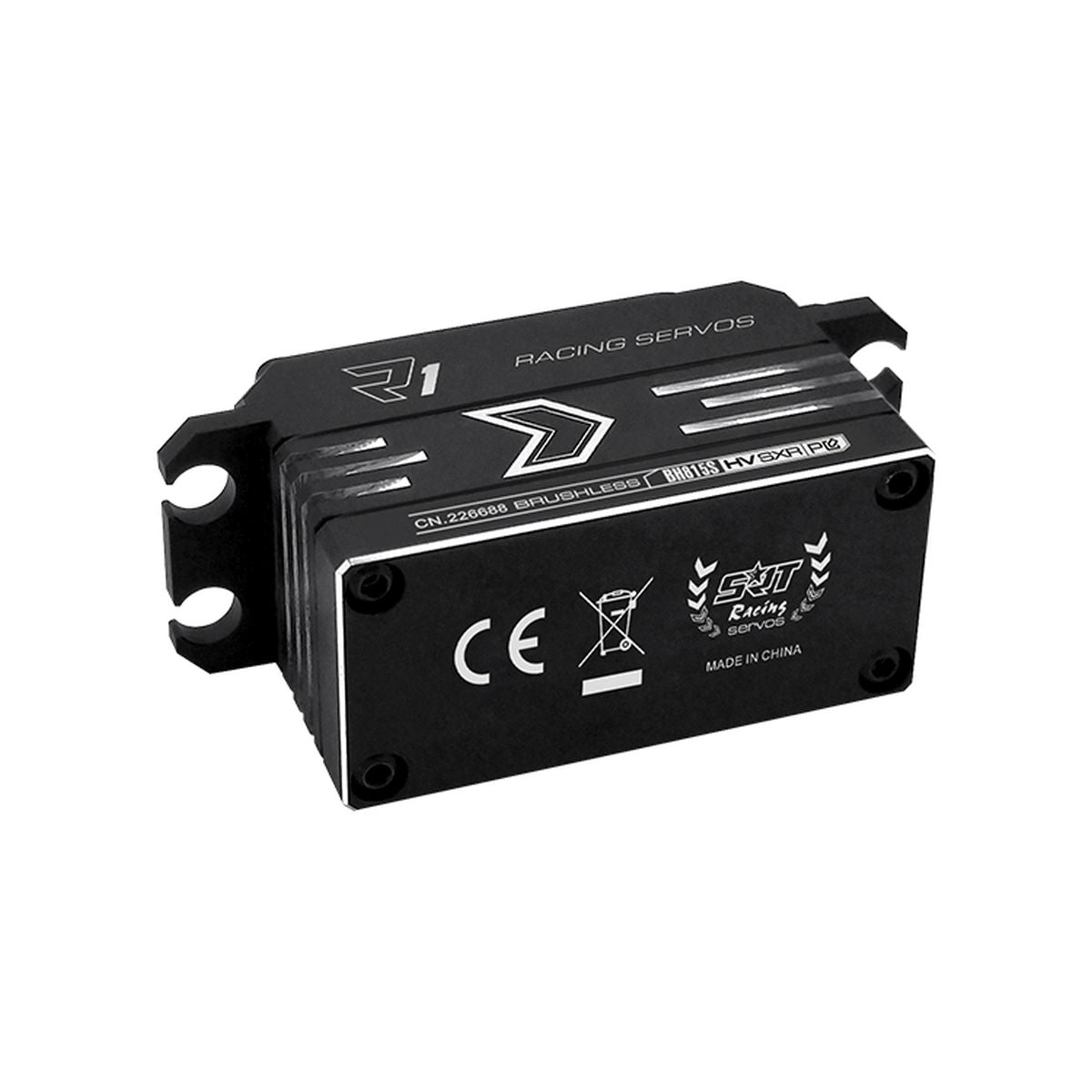

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. This is a standard size low profile servo for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.
Features:
- Unique Mechanic Design
- Incredible efficiency and low power consumption
- Standard dimension makes it perfect for vehicles that can benefit from a high-quality servo
- CNC Machined aluminum case for exceptional cooling
- Supporting SR, SSR, SFR, SUR, SXR multiple ultra high-speed modes
- 2 usec Dead Band
- Superior Holding Torque
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Brushless
- Gear Type: Metal
- Gear Material: Titanium & Aluminum
- Control System: Pulse Width Control
- Working Frequency: 1520 Is / 330hz
- Operating Voltage: dc6.0-8.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (6.0v): 0.065 sec/60 degrees at no load
- Operating Speed (7.4v): 0.055 sec/60 degrees at no load
- Operating Speed (8.4v): 0.050 sec/60 degrees at no load
- Stall Torque (6.0v): 10.0kg.cm (138.8 oz/in)
- Stall Torque (7.4v): 13.0kg.cm (180.5 oz/in)
- Stall Torque (8.4v): 15.0kg.cm (208.3 oz/in)
- Potentiometer Drive: Direct Drive

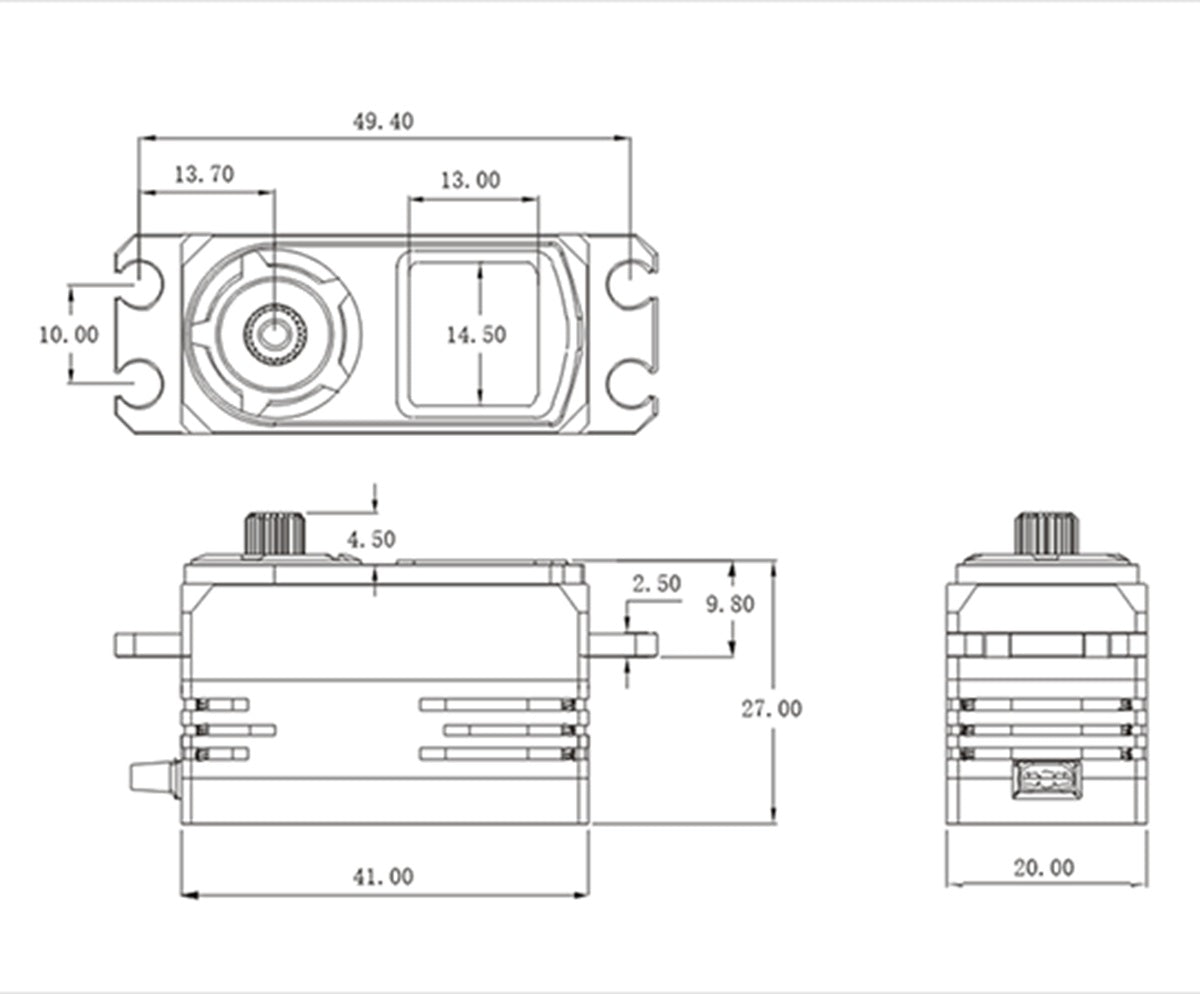

- Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
- Weight: 52.0g (1.83 oz)
- Connector Wire Length: jr 180 mm
