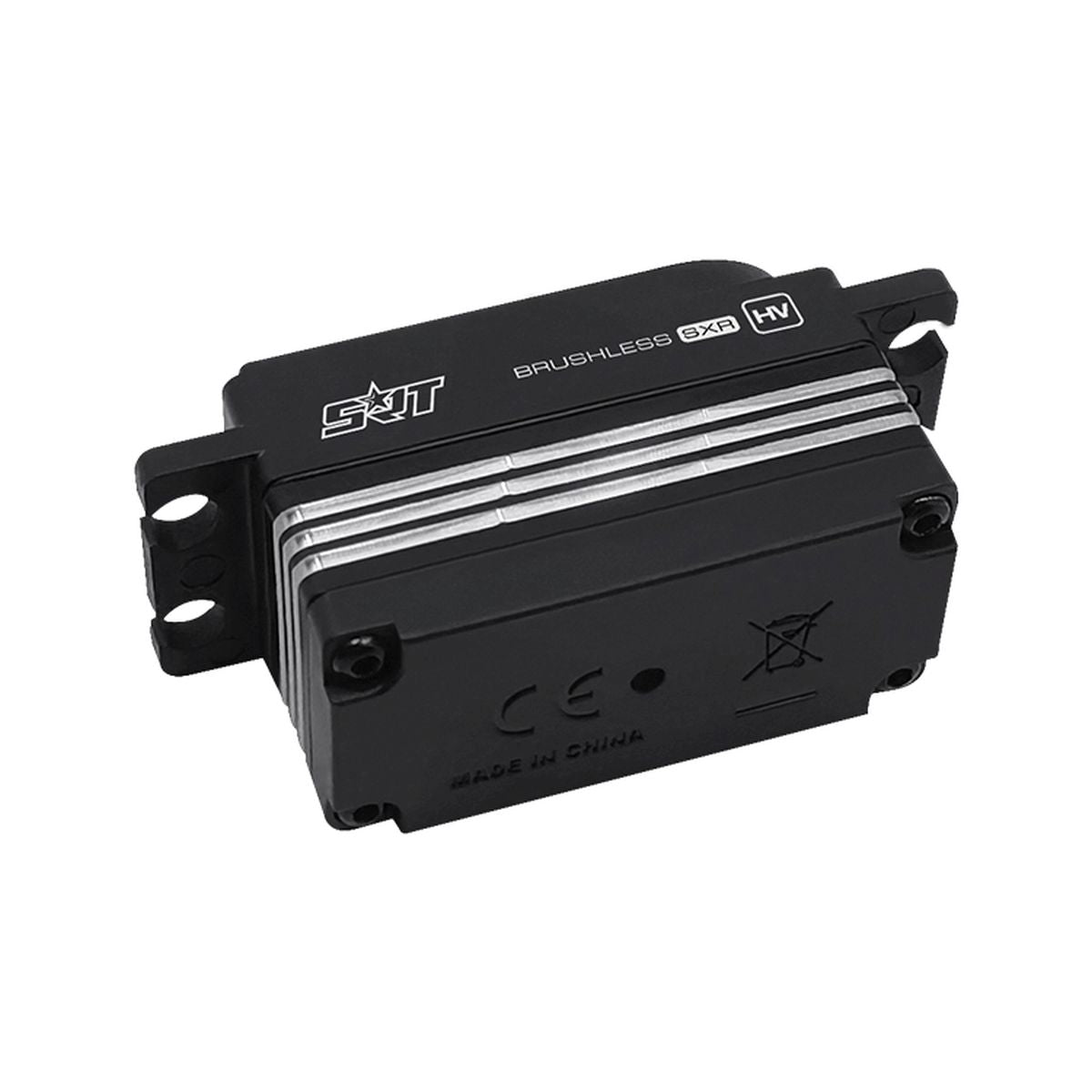

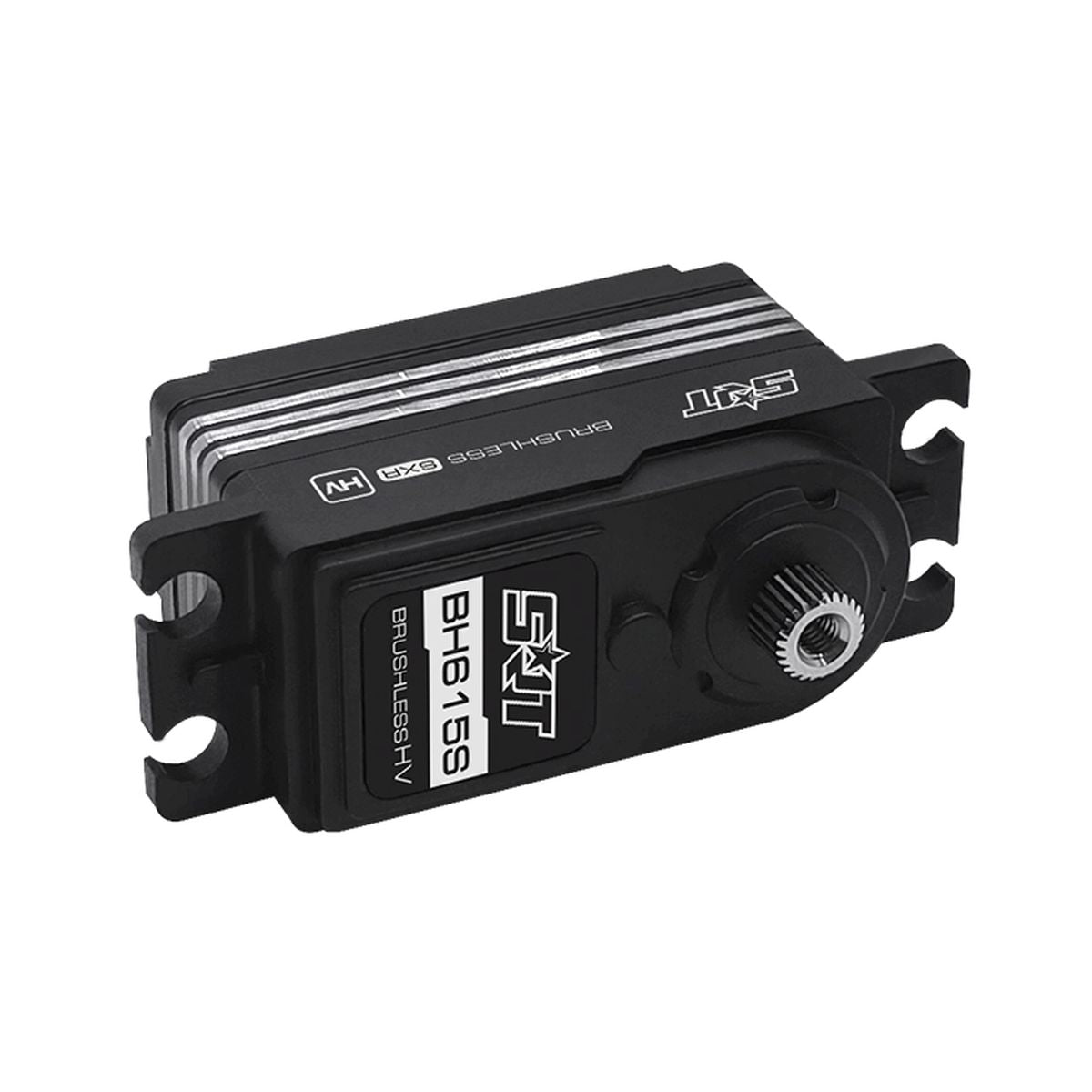

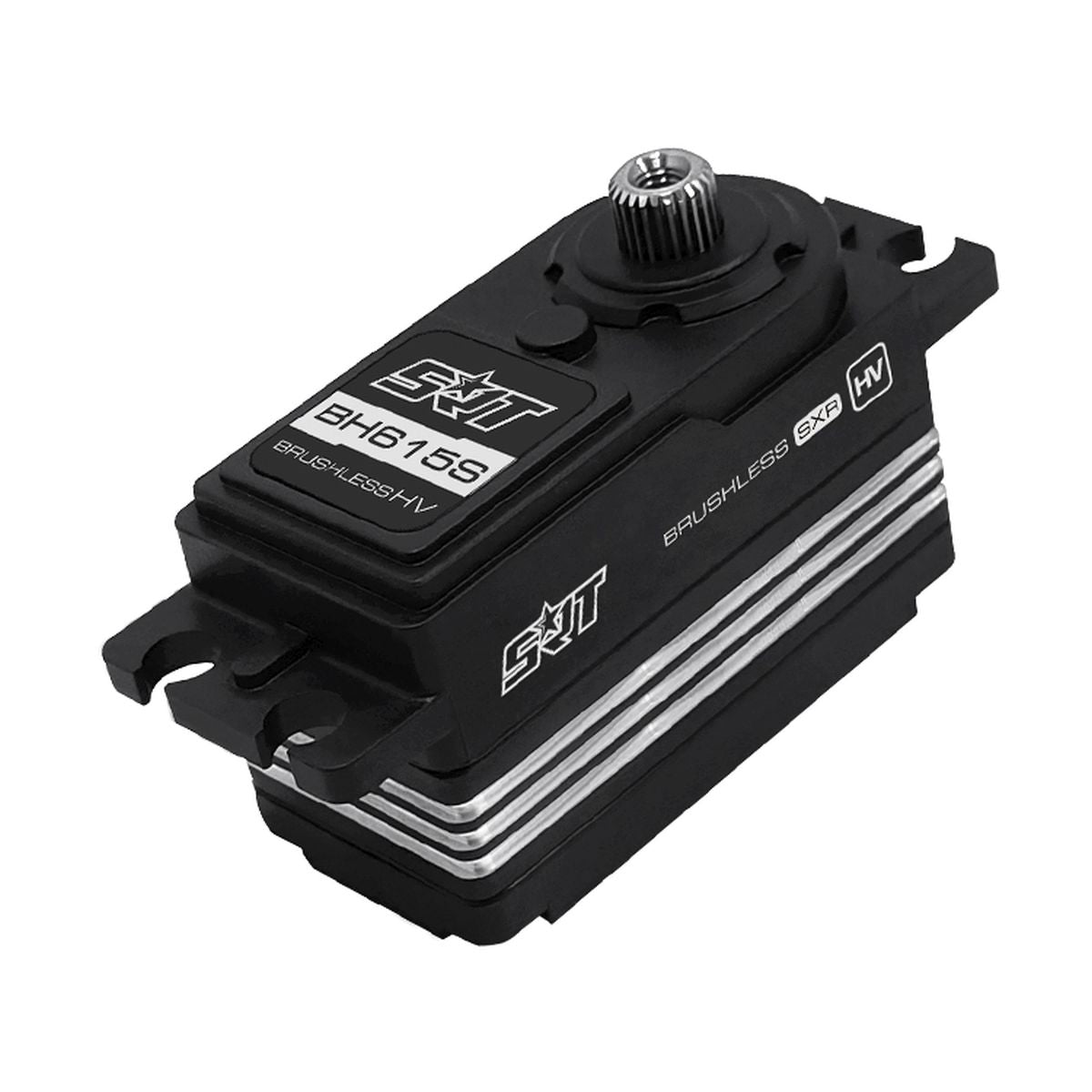

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.
Features:
- Ideal for 1/10 on road applications
- Incredible efficiency and low power consumption
- Aluminum case for good heat dissipation
- Supporting SUR, SFR, SR, SSR, SXR multiple ultra high-speed modes.
- NMB dual main bearings
- 25T output shaft
- 1-Year Limited Warranty
Specifications:
- Type: Digital
- Bearing: Dual
- Motor Type: Brushless
- Gear Type: Metal
- Gear Material: Titanium & Aluminum
- Control System: Pulse Width Control
- Working Frequency: 1520 Is / 330hz
- Operating Voltage: dc6.0-8.4v
- Operating Temperature Range: -10 to + 60 degree
- Operating Speed (6.0v): 0.062 sec/60 degrees at no load
- Operating Speed (7.4v): 0.052 sec/60 degrees at no load
- Operating Speed (8.4v): 0.045 sec/60 degrees at no load
- Stall Torque (6.0v): 10.0kg.cm (138.8 oz/in)
- Stall Torque (7.4v): 13.0kg.cm (180.5 oz/in)
- Stall Torque (8.4v): 15.0kg.cm (208.3 oz/in)
- Potentiometer Drive: Direct Drive

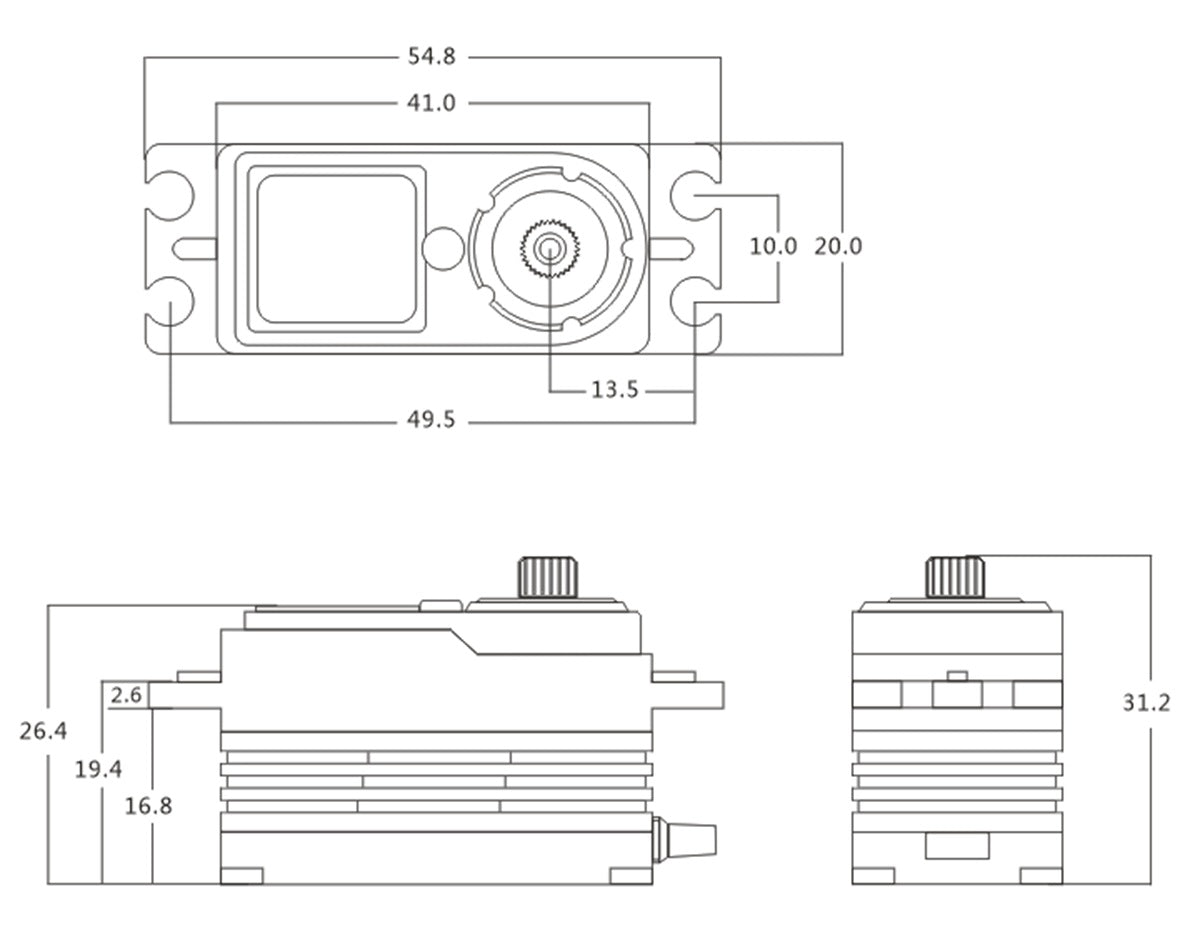

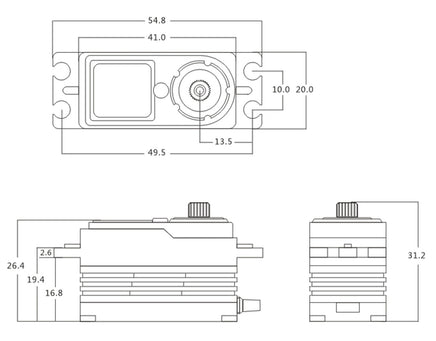

- Dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
- Weight: 43.0g (1.52 oz)
- Connector Wire Length: jr 180 mm
