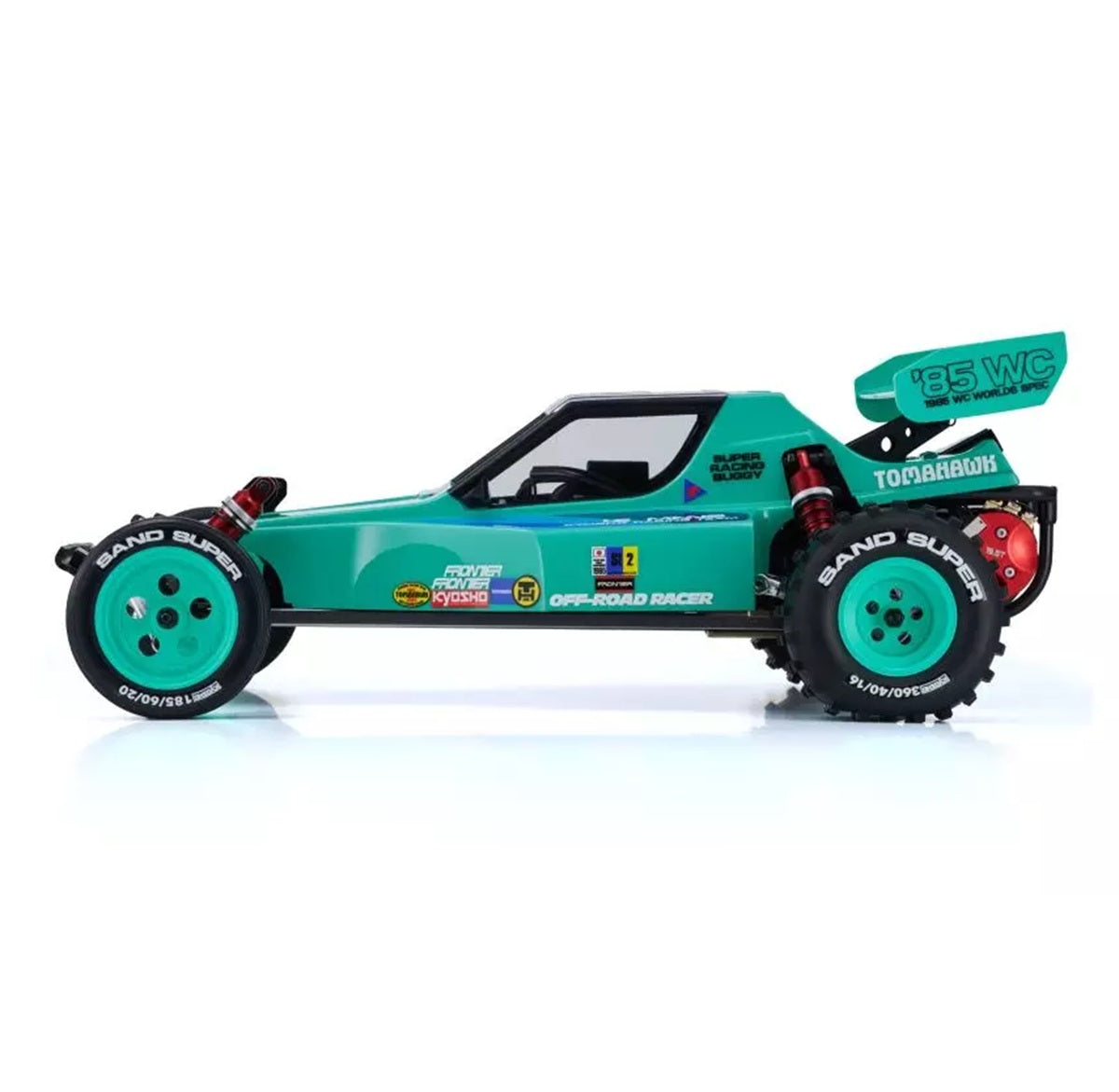

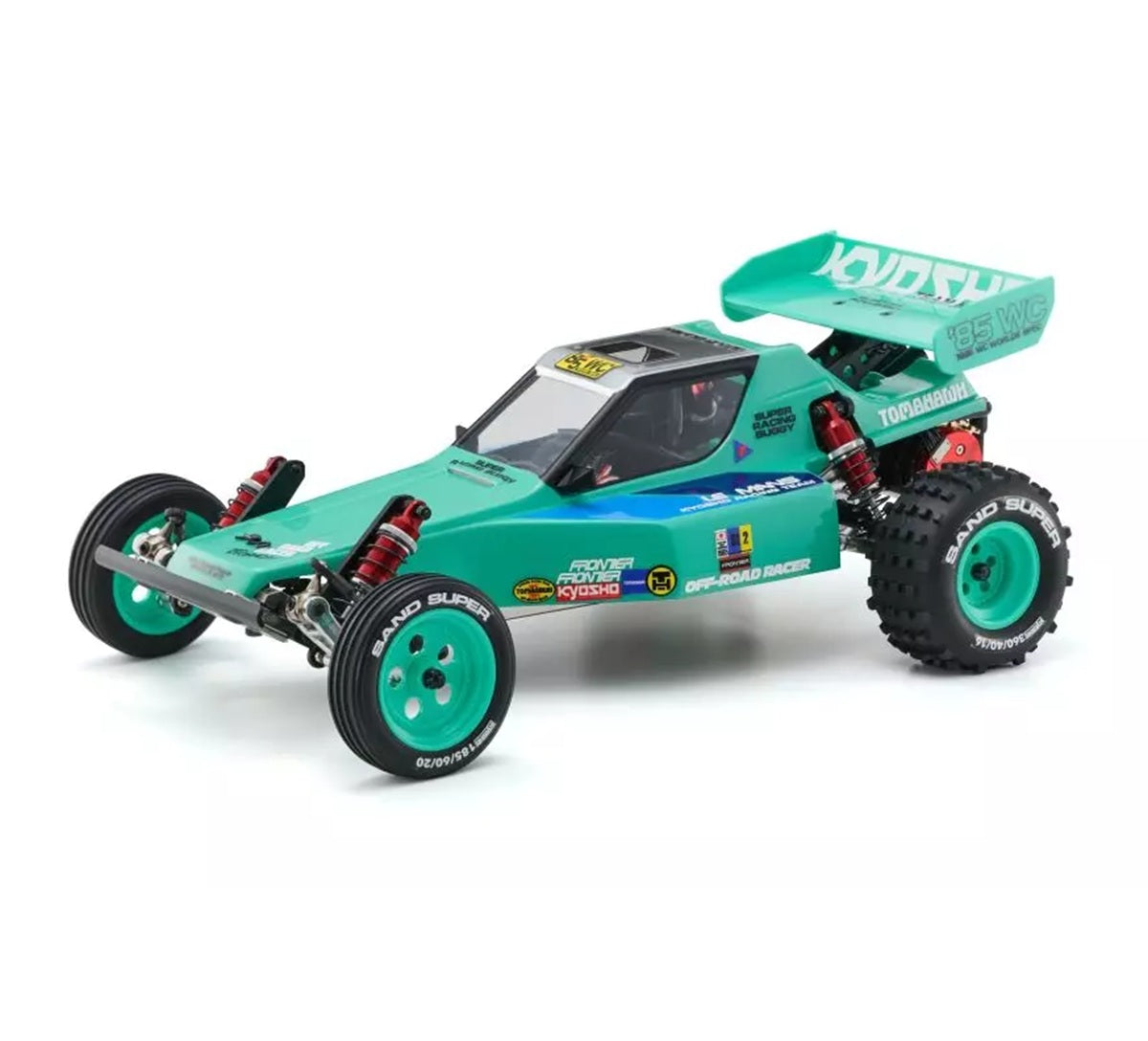

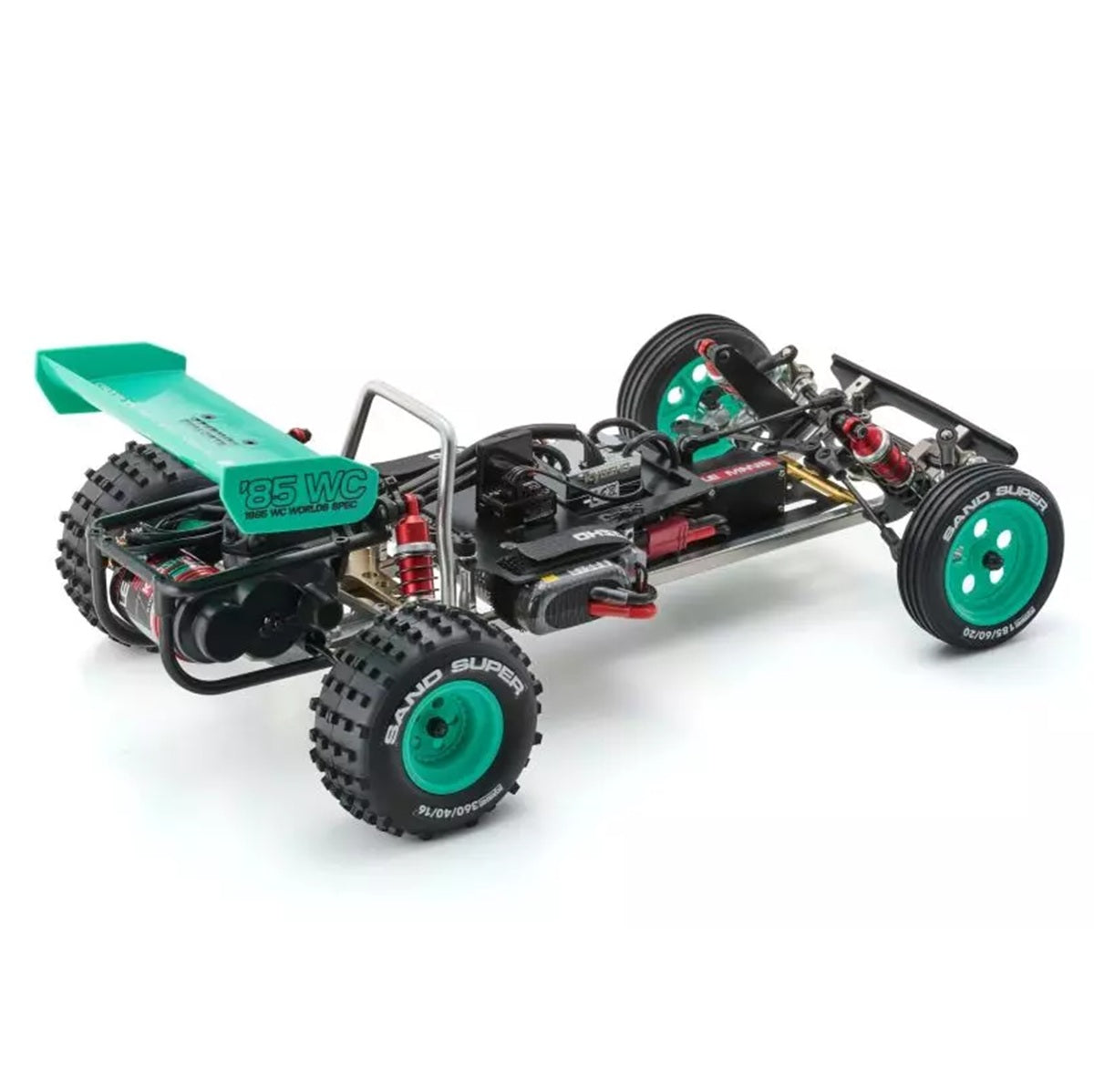

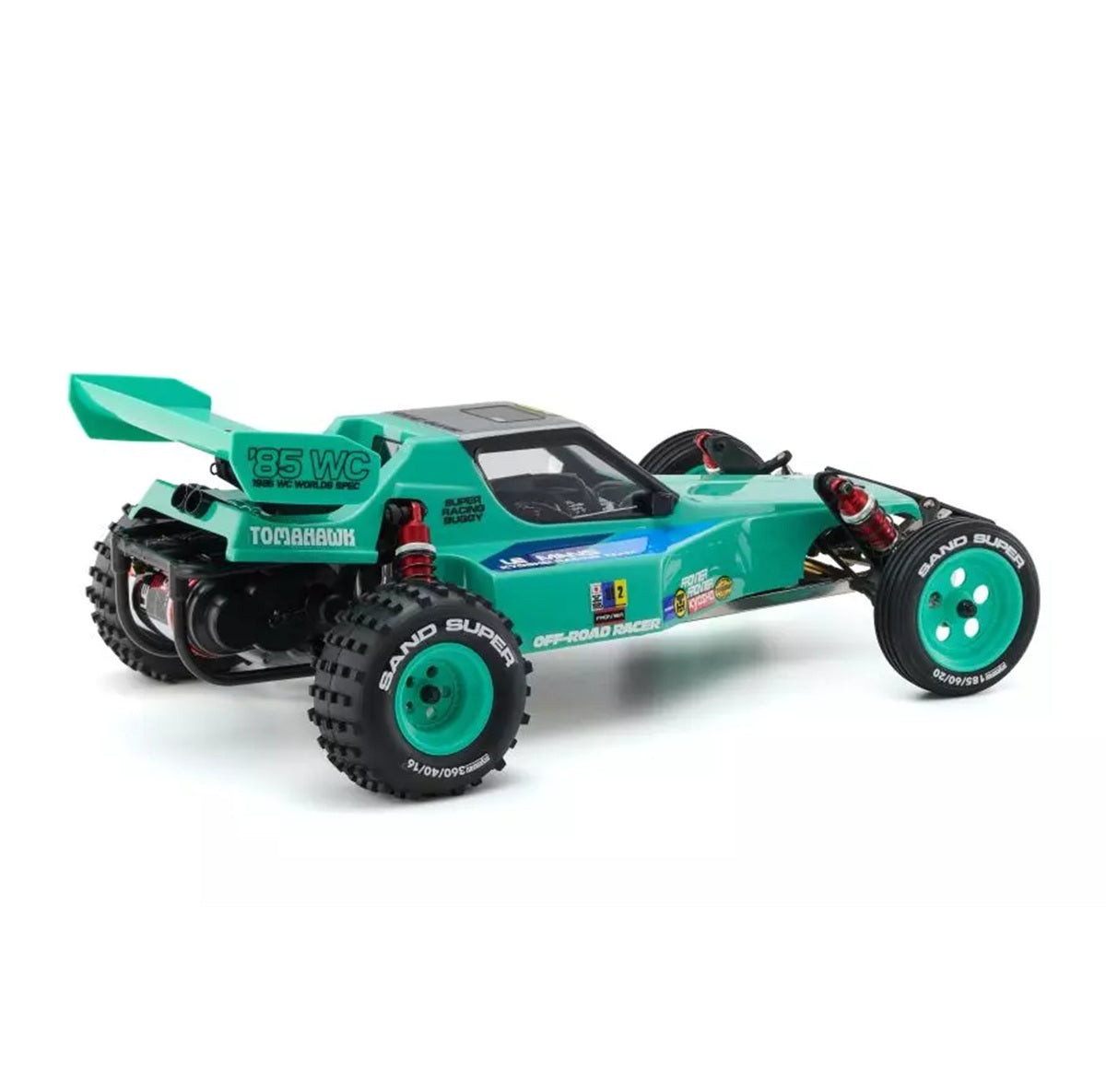

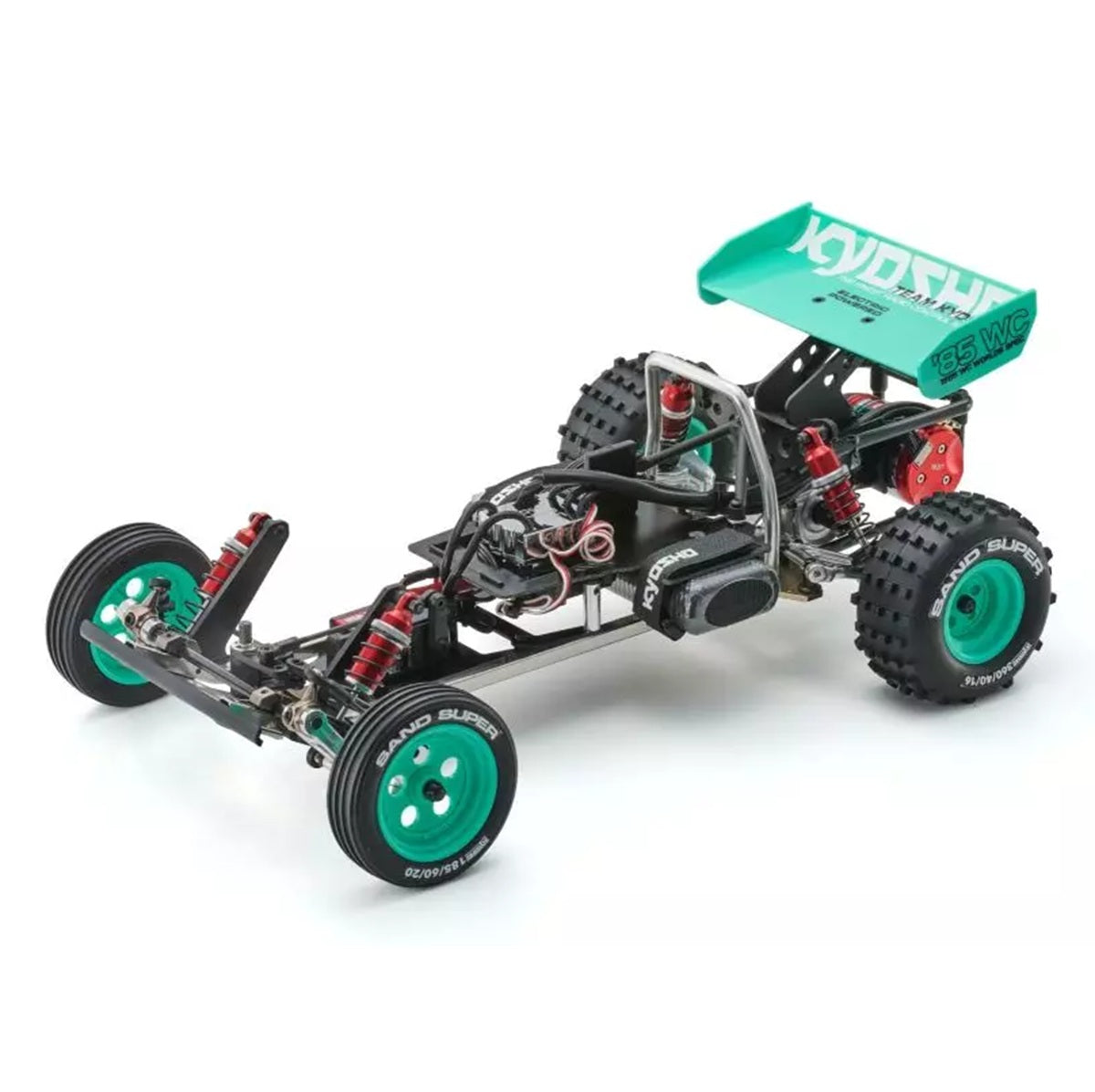

A replica model of the Tomahawk works car that competed in the 1st 1/10 Electric Off-Road World Championship held in the United States in 1985. Faithfully reproducing the car actually driven by designer Akira san at the World Championship.
Includes:
- Pre assembled gear box and shocks
- Chassis parts
- Clear body
- Decals
- Hex wrench
- Cross wrench
- Shock tool
- Grease and silicone oil
Required to Complete:
- 2CH TX/RX set
- 1 standard size servo
- ESC x 1
- 540 size brushed motor recommended
- 7.2V NiMh Battery or 2S Li-Po pack (ESC needs to be compatible)
- Charger
Features:
- Stainless steel hard main chassis rails
- Ball differential
- Universal swing shafts
- Front and rear dial-adjustable red anodized oil dampers styled after the period works aluminum dampers
- Front and rear FRP shock towers
- Steel HD caster blocks
- CNC-machined arm shaft blocks
- New wing mount
- 7075 duralumin rear suspension plate
- 7075 duralumin gearbox mount
- FRP servo mount plate
- Wheel-lock style rear wheel hubs
- Javelin-style green rear wing
- Front and rear green wheels
- New decals
Specifications:
- Length: 380mm
- Width: 236mm
- Height: 152mm
- Wheelbase: 263mm
- Tread (F/R): 298mm/195mm
- Tire Diameter (F/R): D75mm / D85mm
- Tire width (F/R): 20mm / 41mm
- Gear Ratio: 6.9 : 1 / 8.3 : 1
- Weight: 1500g
