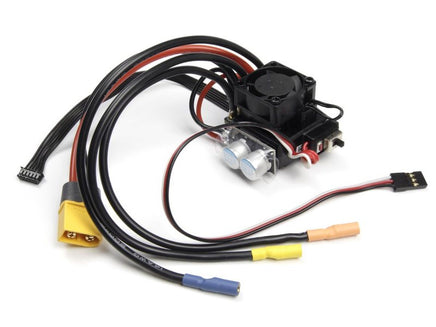

Smooth, precise throttle control is essential for maintaining speed, balance and angle while drifting. The SD-10BL80-RTR-G2 Sensored Brushless ESC delivers responsive, predictable power for confident drift initiation, controlled transitions and consistent performance around the track.
With an 80A continuous current rating and 240A peak output, this ESC is designed for 2S LiPo systems using compatible 3650-size sensored brushless motors. Its built-in switch-mode BEC provides a stable 6V/4A output for the receiver and steering servo, while also powering the cooling fan.
The ESC is programmable with a wide range of adjustable settings that allow its power delivery, braking and timing characteristics to be tuned to suit your car, track and driving style.
With an 80A continuous current rating and 240A peak output, this ESC is designed for 2S LiPo systems using compatible 3650-size sensored brushless motors. Its built-in switch-mode BEC provides a stable 6V/4A output for the receiver and steering servo, while also powering the cooling fan.
The ESC is programmable with a wide range of adjustable settings that allow its power delivery, braking and timing characteristics to be tuned to suit your car, track and driving style.
Features:
- Sensored brushless operation
- Compatible with 3650-size sensored motors rated at 8.5T or higher
- Ideal for 1/10-scale drift cars
- Also suitable for 1/10-scale touring cars, buggies, rally cars and F1 cars
Specifications:
- Continuous Current: 80A
- Burst Current:240A
- Battery Limit: 2S LiPo
- Motor Type: Sensored Brushless
- Motor Limit: 6000KV
- BEC: 6V/4A switching
- Dimensions: 35.0x31x30.8mm
Programmable Settings:
- Running mode
- Cutoff voltage
- Punch
- Drag brake force
- Maximum brake force
- Maximum reverse force
- Motor rotation
- Boost timing
- Turbo timing
- Turbo delay
