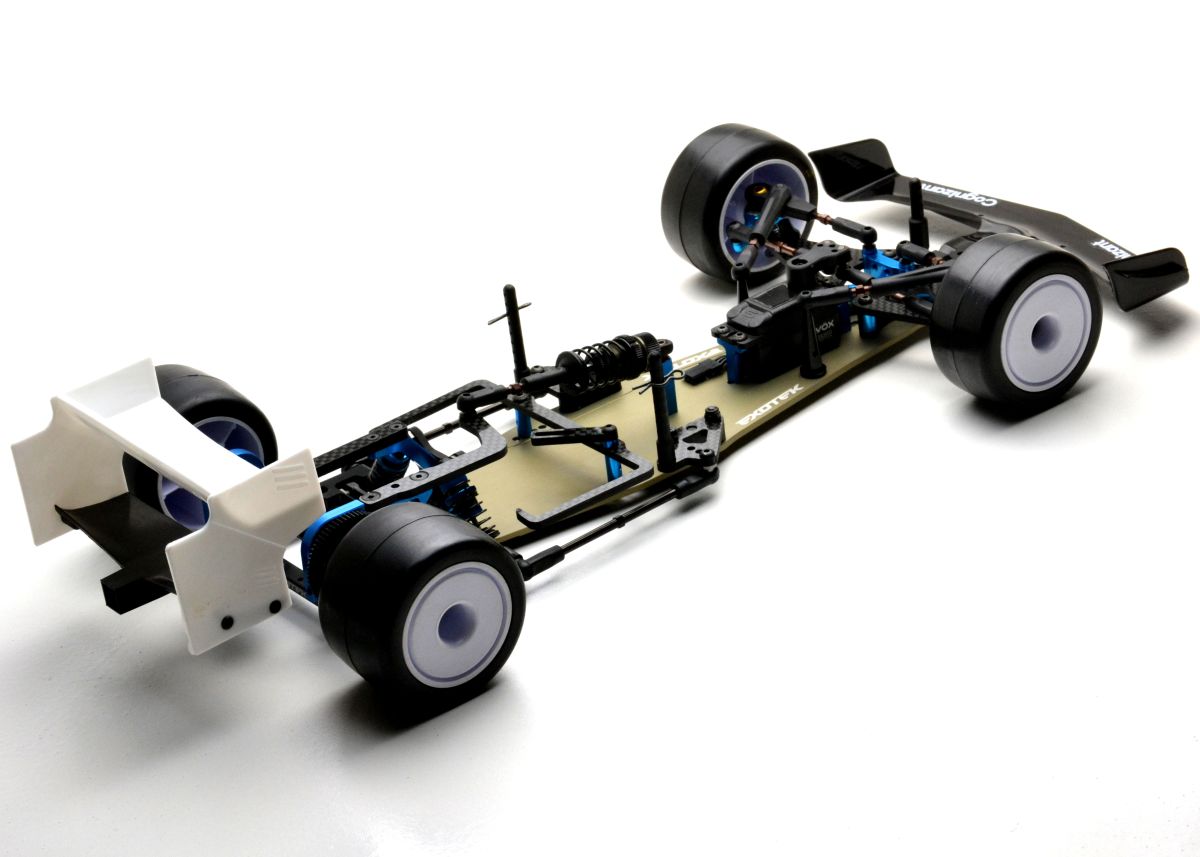

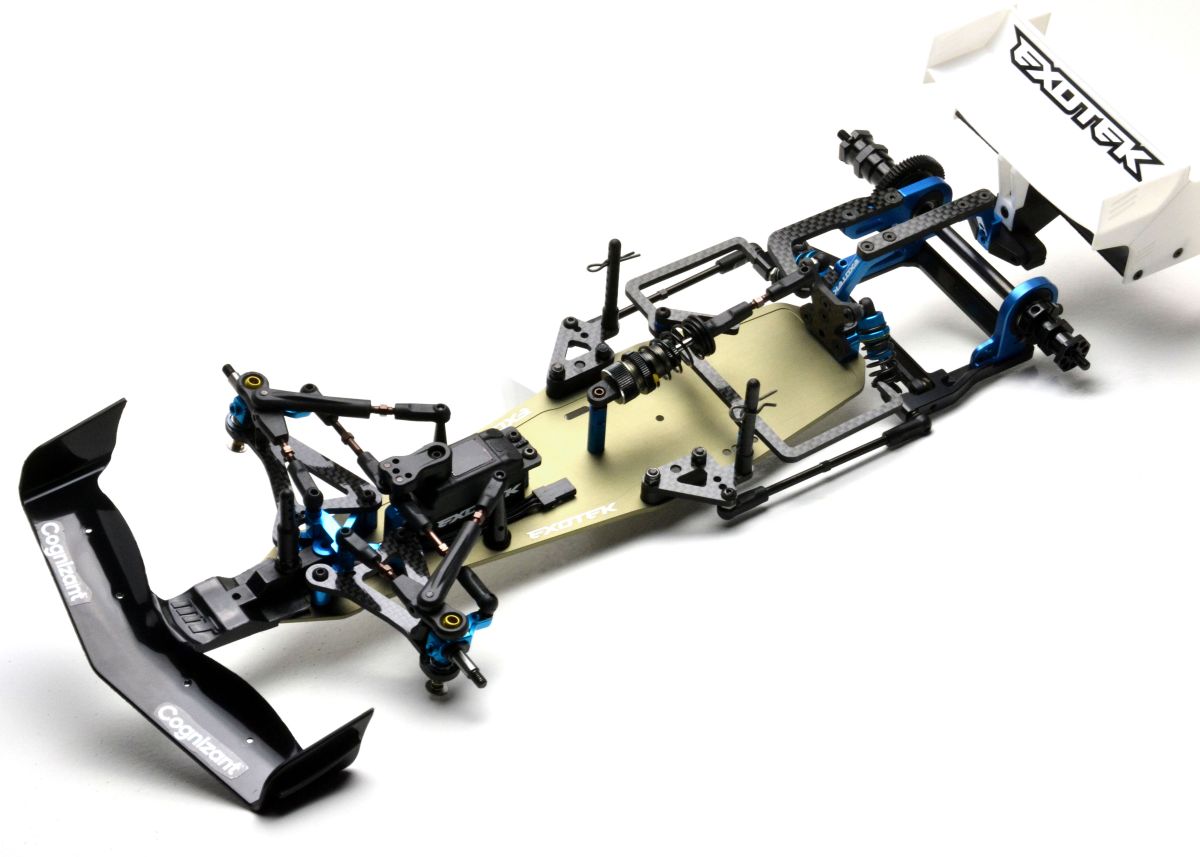

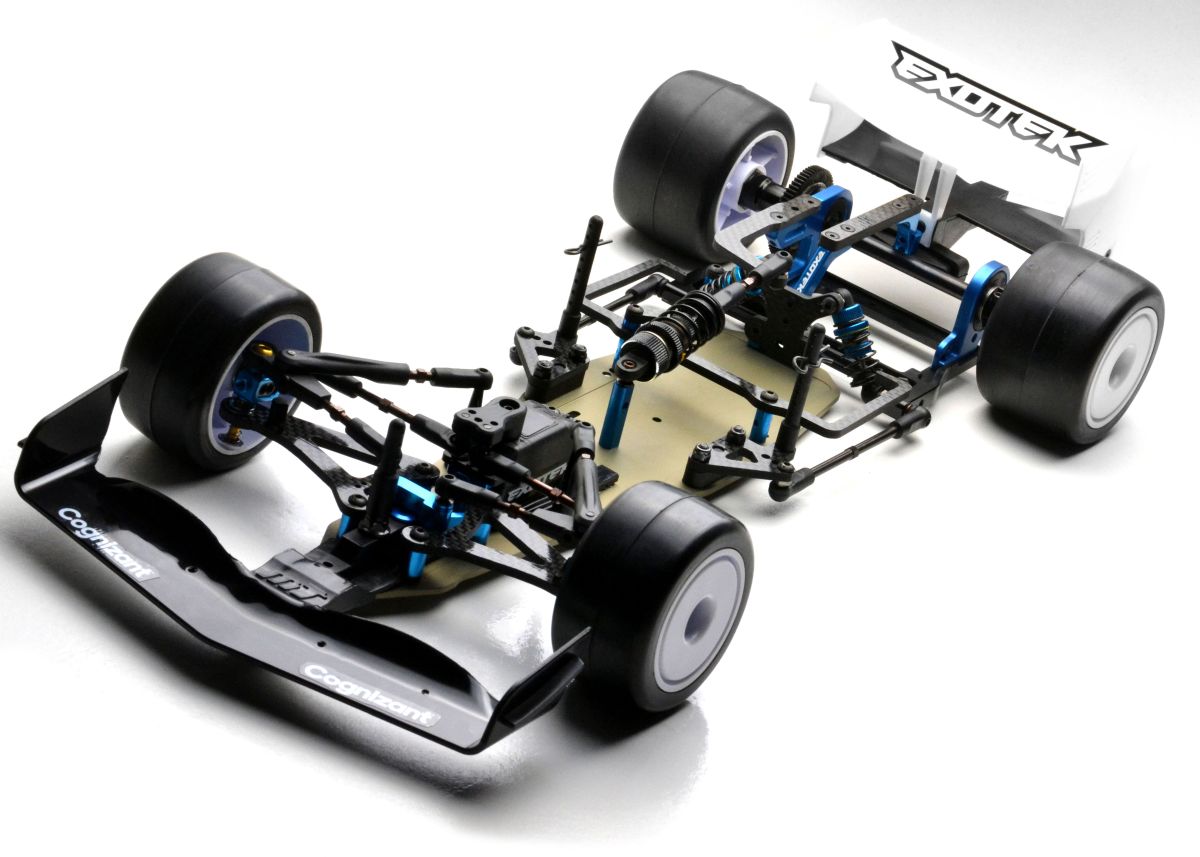

The F1ULTRA R5 PRO is a cutting edge high-performance F1 racing kit that evolves all of the great features of the original F1Ultra into a perfected race machine.
The 'PRO' kit includes the must have option parts that powered the team to multiple class wins and titles.
The 'PRO' kit includes the must have option parts that powered the team to multiple class wins and titles.
Features:

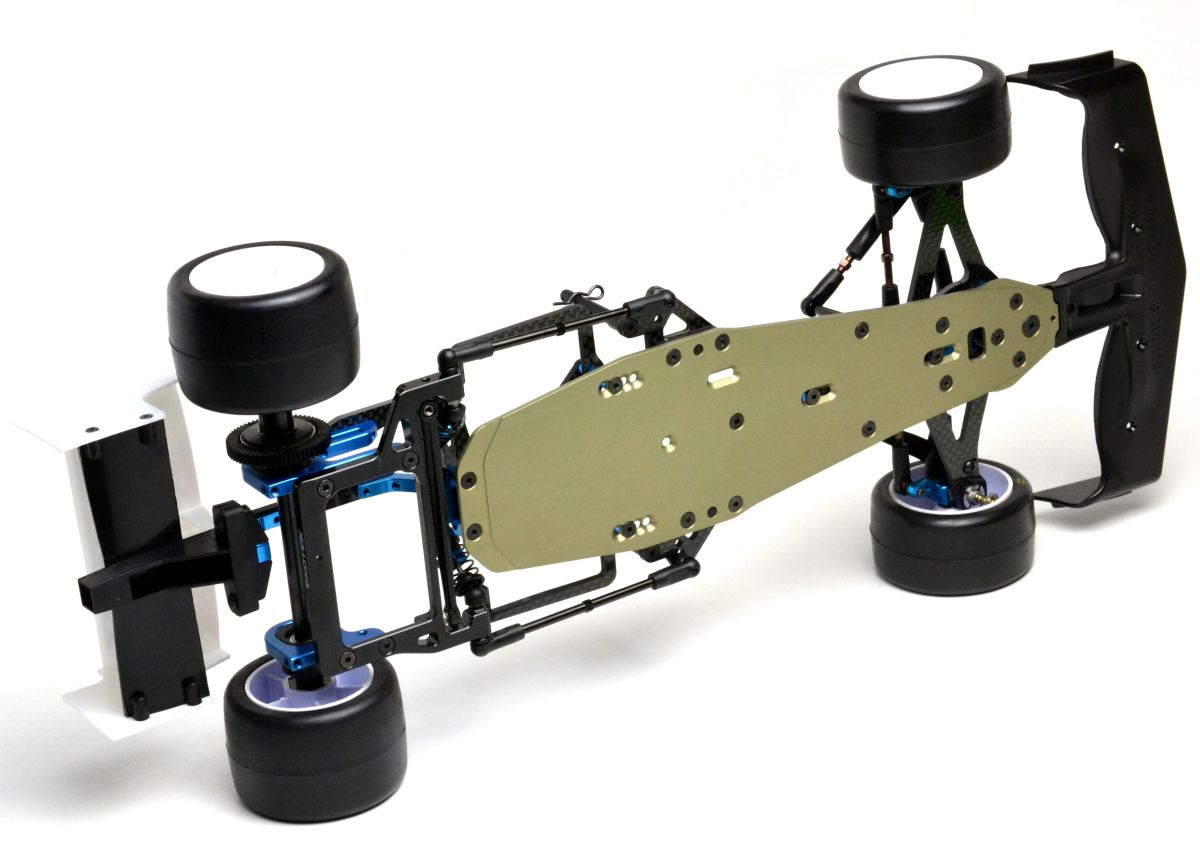

- 2.5mm low CG 1-piece 7075 chassis for superior high and low grip asphalt characteristics.
- Carbon fiber adjustable battery tray.
- Heavy duty alloy and carbon fiber rear wing mount system included for improved rear grip.
- Heavy duty extra-long side links for less flex and more consistency.
- Heavy duty front alloy and steel off set axle steering hubs for improved handling.
- +2mm front carbon fiber arms.
- Wide rear shock tower.
- Heavy duty alloy front pivot pin cups.
- Extra narrow 72mm chassis for less chassis scrub through corners.
- Adjustable forward and back servo positioning for easy ackerman/steering geometry adjustments.
- Patented floating pod rear suspension system for superior rubber tire traction.
- No center rear pod ball pivot, which means much improved chassis roll for unmatched corner speeds.
- Adjustable camber and caster via turnbuckles for easy and exact set up changes, with no additional expensive parts needed.
- Easy front roll center changes via shims on the inner camber mounts.
- 3 oil filled shocks with all machined bodies and internals for velvety smooth operation and proper sealing.
- 1-piece heavy duty machined alloy front bulkhead provides rock solid tweak free front suspension mounting.

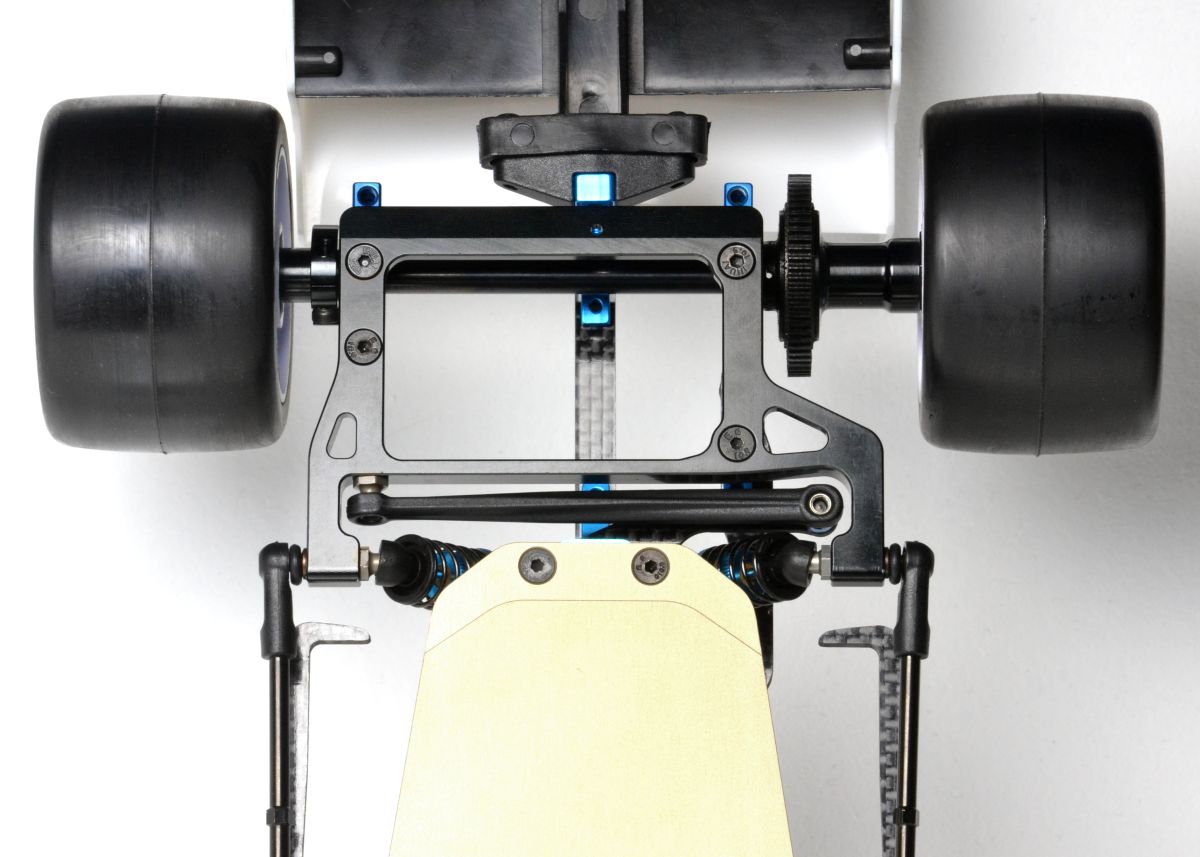

- 1-piece 7075 alloy rear pod plate for a tweak free heavy-duty design, adds rear traction and improves motor cooling.
- High performance ball diff set included.
- Simplified direct steering to servo design for reduced play, reduced parts count and precise steering feel.
- Integrated 30mm fan mount on the left pod.
- Heavy duty motor mount with upper and lower motor attachment for less motor flexing to prolong spur gear life.
- Easy grip/ easy removal custom e-clips on the front suspension pins.
- One piece steel front suspension pins for less play.
- Double bolt front wing mount.
Required to Complete:
- 1:10 Scale F1 Wheels and Rubber (or Foam) Tires
- 1:10 Scale Polycarbonate F1 Body
- 1:10 Scale Electric Motor
- SMALL SIZED Electronic Speed Controls (TEKIN RS SPEC ESC fits and works very well). May need to remove esc fan for other esc's
- LOW PROFILE TC type steering Servo (no off-road servos)- see servo picture detail
- "Shorty" 4000-4800mah LCG Shorty Pack
- Battery Charger
- 2-Channel Surface Radio System
- Polycarbonate-Specific Spray Paint for Body
- Servo Tape (3M brand is best)
- Kit building tools
