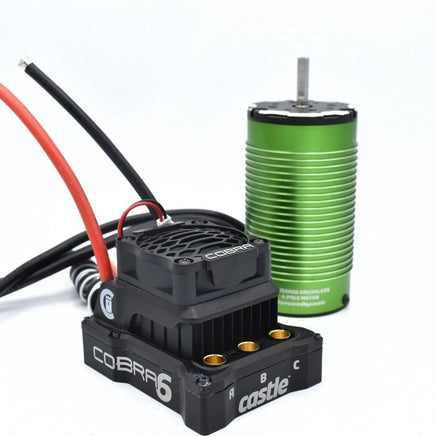

The COBRA 6, 33.6V ESC W/1717-1260KV SENSORED COMBO is ready to take on any R/C vehicle weighing up to 20lbs and running up to 8S LiPo. Designed for heavy, high-performance rigs, you'll experience controllable low-end ranges, without sacrificing power, punch, or speed.
Based around their popular Monster X 8s ESC, this is a direct upgrade and replacement for the next generation of bashing. Taking the core features from its predecessor, the Cobra packs in new features thanks to its powerful 32-bit processor.
Based around their popular Monster X 8s ESC, this is a direct upgrade and replacement for the next generation of bashing. Taking the core features from its predecessor, the Cobra packs in new features thanks to its powerful 32-bit processor.
Includes:
- Cobra 6 ESC
- 4-POLE Sensored 1717-1260KV Motor
- 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
- Motor Quick Start Guide
Updated Features:
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes: Double the maximum sample frequency of older generations. / 8x increased logging time of older generations. / Data point for ESC electrical motor timing. / Data point for acceleration via onboard accelerometer. / Looping feature prevents interruptions in data log recording. / Ability to download specific sessions.
- Additional tuning features include: Improved braking adjustability / Separate brake and reverse curves /Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Optional smartphone-based programming with the B-LINK Bluetooth Interface (sold separately) and the Castle Link 2 App on Google Play or Apple App Store.
- Mounting holes located in bottom of aluminum case for installation into vehicle.
Key Features:
- Input Voltage Range 2S-8S LiPo
- Sensorless, Sensored and SmartSense Running Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 40MM cooling fan
- Waterproof design for all weather conditions
- Enhanced Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Easily tune and update ESC with USB and Bluetooth programming options
- Castle Link USB programming (Castle Link V4 included!)
- Optional smartphone-based programming with the B-LINK 2 Bluetooth Interface (sold separately) and Castle Link 2 app available on Google Play or Apple App Store
- Mounting holes located in bottom of aluminum case for installation into vehicle.
- Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
Motor Features:
- 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
- Proprietary stator winding produces low internal resistance for a cooler running motor
- Dual sensor ports to ensure optimal installation in your large-scale vehicle
- Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
- High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
ESC Specifications:
- Input Voltage Range: MIN: 2S LiPo , MAX: 8S LiPo 33.6V
- BEC Specifications: 5.5V to 8.0V adjustable in 0.1V increments (8A peak), default 5.5V
- Operating Environment: Waterproof* design allows for use in nearly any environment.
- Brake: Proportional
- Reversible: Yes but may be disabled for racing.
- On/Off Switch: Yes, waterproof
- Cooling Fan: Yes, factory equipped (40MM), fully removable** (see Product Use Statements below)
- Size (L x W x H): 2.73" x 2.13" x 1.85" (69.5mm x 54.1mm x 47mm)
- Weight (with no battery connector): 5.75 oz. (163 grams)
- Connectors: 6.5mm female bullets for motor connection.
- Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
- Product Use Statements: Recommended battery capacity for 1:6th scale vehicles is 5000mah. Castle recommends using 50C continuous discharge or higher LiPo batteries. / Surge ratings should never be used to determine a pack's suitability for a brushless application. / They recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors. / Applying voltages higher than 33.6V will cause irreparable damage to ESC. / Although the Cobra 6 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt. / The cooling fan must be removed prior to driving in wet conditions. It is not waterproof. / Note: While many users have utilized the Cobra 6 in extremely high-speed applications and drag setups, it is NOT intended for this application. As such the Castle warranty does NOT cover failure when used in high speed or drag applications.
- Application Guidelines: Cobra 6 and 1717-1260Kv motor is intended for use in 1:6th scale vehicles weighing up to 20 lbs. and running up to 8S LiPo. A great upgrade for heavier 1:8th vehicles and lighter 1:6th vehicles.
- Programmability: Fully programmable Castle feature set using the included Castle Link V4 USB adapter and freely downloadable Castle Link 2 Windows software, or the Castle Link iOS or Android app with B-LINK 2 Bluetooth Adapter (sold separately).
Motor Specifications:
- Input Voltage Range: 3S-8S LiPo
- Kv: 1260
- Max. RPM: 56,000
- Size: Length: 3.35" (85.1mm)
- Diameter: 1.87" (47.6mm)
- Weight (w/wires): 597.6g (21.08oz); 548g without wires
- Shaft Diameter: 5mm
- Mounting Hole Specifications: M3 and M4@25.4mm (1.0") Diameter
- Cooling Fan: Optional, 011-0162-00
- Connectors: 6.5mm male connectors
- Application Guidelines: Ideal for vehicles up to 20lbs running 6s - 8s LiPo. / Examples include Losi LST2-E; Traxxas: E-Maxx, E-Revo, UDR, Summit; Redcat Shredder / NOTE: The 1717-1260kv has a lower wattage/power rating compared to the 1717-1650kv; as such the 1260kv will run hotter than the 1650kv when geared for the same speed. For higher power applications (IE speed and drag setup), the 1717-1650kv is preferred with appropriate gearing.
- Tech Notes: Running modes: SMARTSENSE, Sensored, Sensorless with Castle sensored capable ESCs. / Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
