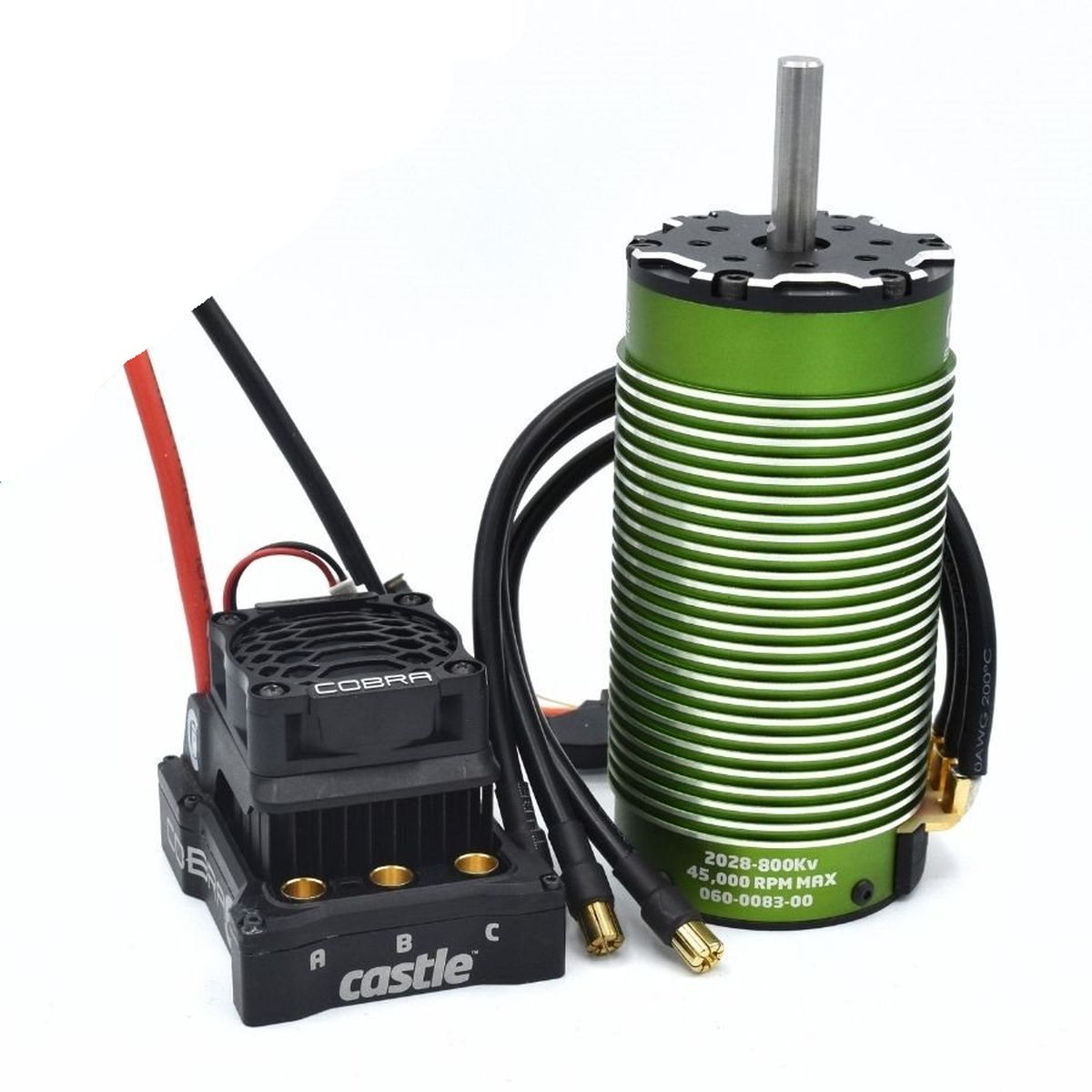

The COBRA 6, 33.6V ESC W/2028-800KV SENSORED COMBO is ready to take on any R/C vehicle weighing up to 25lbs and running up to 8S LiPo. Designed for heavy, high-performance rigs, you'll experience controllable low-end ranges, without sacrificing power, punch, or speed.
Based around our popular Monster X 8s ESC, this is a direct upgrade and replacement for the next generation of bashing. Taking the core features from its predecessor, the Cobra packs in new features thanks to its powerful 32-bit processor.
Based around our popular Monster X 8s ESC, this is a direct upgrade and replacement for the next generation of bashing. Taking the core features from its predecessor, the Cobra packs in new features thanks to its powerful 32-bit processor.
Includes:
- Cobra 6 ESC
- 4-POLE Sensored 2028-800KV Motor
- 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
- Motor Quick Start Guide
Updated Features:
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes: Double the maximum sample frequency of older generations. / 8x increased logging time of older generations. / Data point for ESC electrical motor timing. / Data point for acceleration via onboard accelerometer. / Looping feature prevents interruptions in data log recording. / Ability to download specific sessions.
- Additional tuning features include: Improved braking adjustability / Separate brake and reverse curves /Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Optional smartphone-based programming with the B-LINK Bluetooth Interface (sold separately) and the Castle Link 2 App on Google Play or Apple App Store.
- Mounting holes located in bottom of aluminum case for installation into vehicle.
Key Features:
- Input Voltage Range 2S-8S LiPo
- Sensorless, Sensored and SmartSense Running Modes
- Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 40MM cooling fan
- Waterproof design for all weather conditions
- Enhanced Data logging capability to capture and record performance data from your vehicle
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Easily tune and update ESC with USB and Bluetooth programming options
- Castle Link USB programming (Castle Link V4 included!)
- Optional smartphone-based programming with the B-LINK 2 Bluetooth Interface (sold separately) and Castle Link 2 app available on Google Play or Apple App Store
- Mounting holes located in bottom of aluminum case for installation into vehicle.
- Proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
Motor Features:
- 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
- Proprietary stator winding produces low internal resistance for a cooler running motor
- Dual sensor ports to ensure optimal installation in your large-scale vehicle
- Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
- High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
ESC Specifications:
- Input Voltage Range: MIN: 2S LiPo / MAX: 8S LiPo (33.6v)
- BEC Specifications: 5.5V to 8.0V adjustable in 0.1V increments (8A peak), default 5.5V
- Application Guidelines: Designed for use in 1/7th and 1/6th scale RC vehicles weighing up to 25lbs. The Cobra 6 is not intended for drag racing applications and the one-year warranty does not cover the use of the system outside if its intended use. Improper setup or use of this product can result in catastrophic failures of the motor, esc and/or batteries.
- Running Modes: SmartSense and Sensorless
- Reversible: Yes, but may be disabled for racing.
- On/Off Switch: Yes, waterpoof
- Cooling Fan: Yes, factory equipped (50mm), temperature controlled
- Size (L x W x H): 2.73" x 2.13" x 1.85" (69.5mm x 54.1mm x 47mm)
- Weight (without wires): 5.75 oz. (163 grams)
- Connectors: 6.5mm female bullets for motor connection.
- Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 150+ amps, such as Castle CC Bullet 8.0mm, 6.5mm Polarized Castle Connectors, QS8 8mm Anti Spark, or QS10 10mm Anti Spark soldered to the battery leads.
- Installation: Mounting holes located on the bottom of aluminum case for installation into vehicle.
- Programmability: Fully programmable Castle feature set using the included FREE Castle Link V4 USB adapter and freely downloadable NEW Castle Link 2 Windows software. (Windows 10+ required) or optional smartphone-based programming with the B-Link 2 Bluetooth Interface (sold separately) and free Castle Link 2 app available on Google Play or Apple App Store.
- Operating Environment: Although Cobra 6 is waterproof, it is not intended for operation while completely submerged in liquid. / Always rinse the ESC and motor with clean water after exposure to corrosives or dirt. / While the motor and controller may be waterproof, they suggest users confirm that the rest of their vehicle, including the batteries, servos, radio and chassis are also waterproof before exposing them to liquids of any kind. / The cooling fan must be removed prior to driving in wet conditions. It is not waterproof.
Motor Specifications:
- Input Voltage Range: 12S (8S max with Cobra 6)
- Kv: 800
- Max. RPM: 45,000
- Motor Size: Length: 4.4" (112.7mm)
- Diameter: 2.2" (56.3mm)
- Shaft Size: Length: 30mm
- Diameter: 8mm
- Weight (w/wires): 44 oz. / 2.75 lbs
- Mounting Hole Specifications: 4mm @ 30mm
- Cooling Fan: Available for purchase (011-0153-00)
- Connectors: 8.0mm male bullets,
- Items Needed for Operation: N/A
- Product Use Statements: N/A
- Application Guidelines: Perfect upgrade for any 1:6 scale RC hobby vehicles (including gas to electric conversions) weighing up to 25 lbs
- Max. Recommended Vehicle Weight: 25 lbs with Cobra 6 ESC.
- Tech Notes: Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments. / Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 200deg F on the the motor or ESC. / Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
