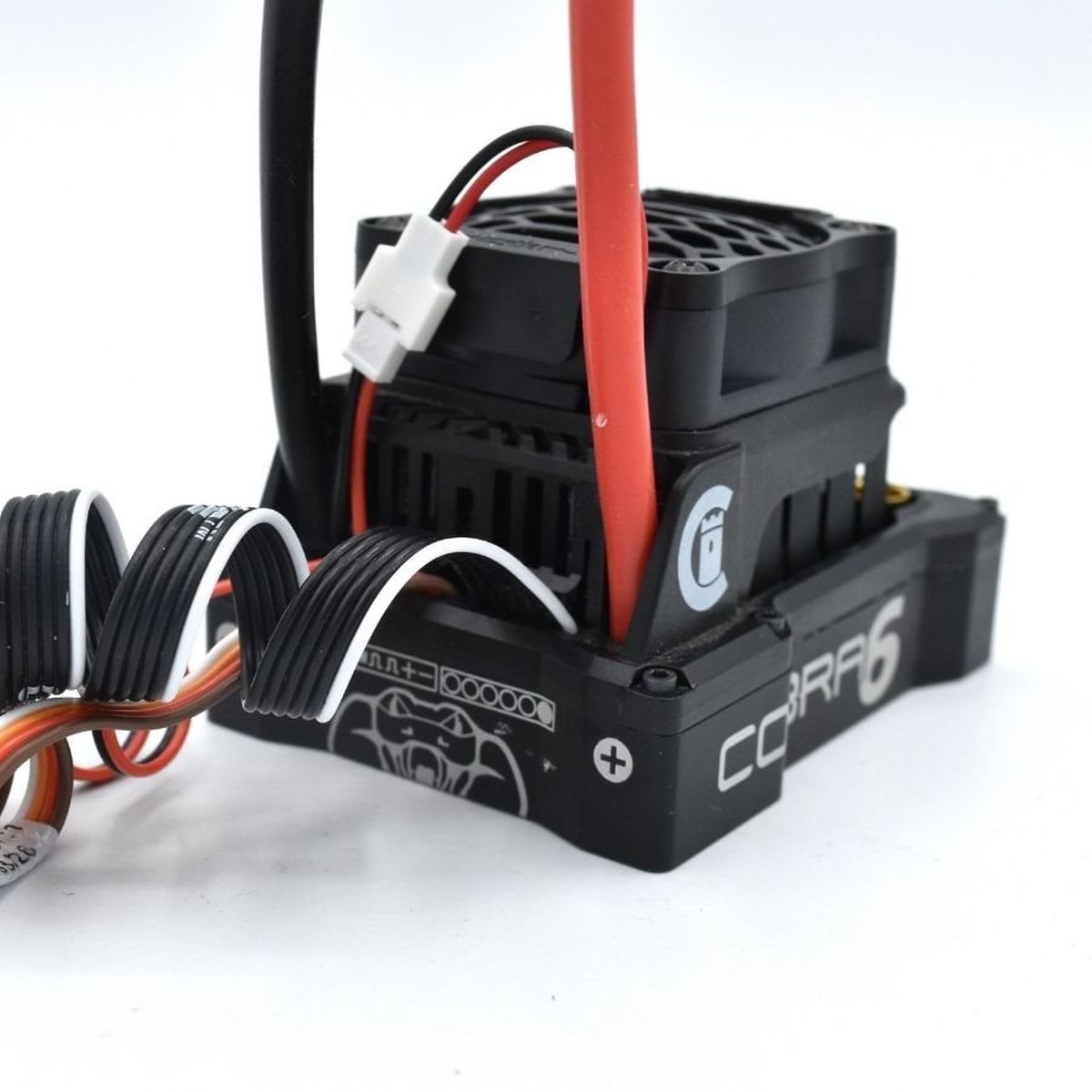

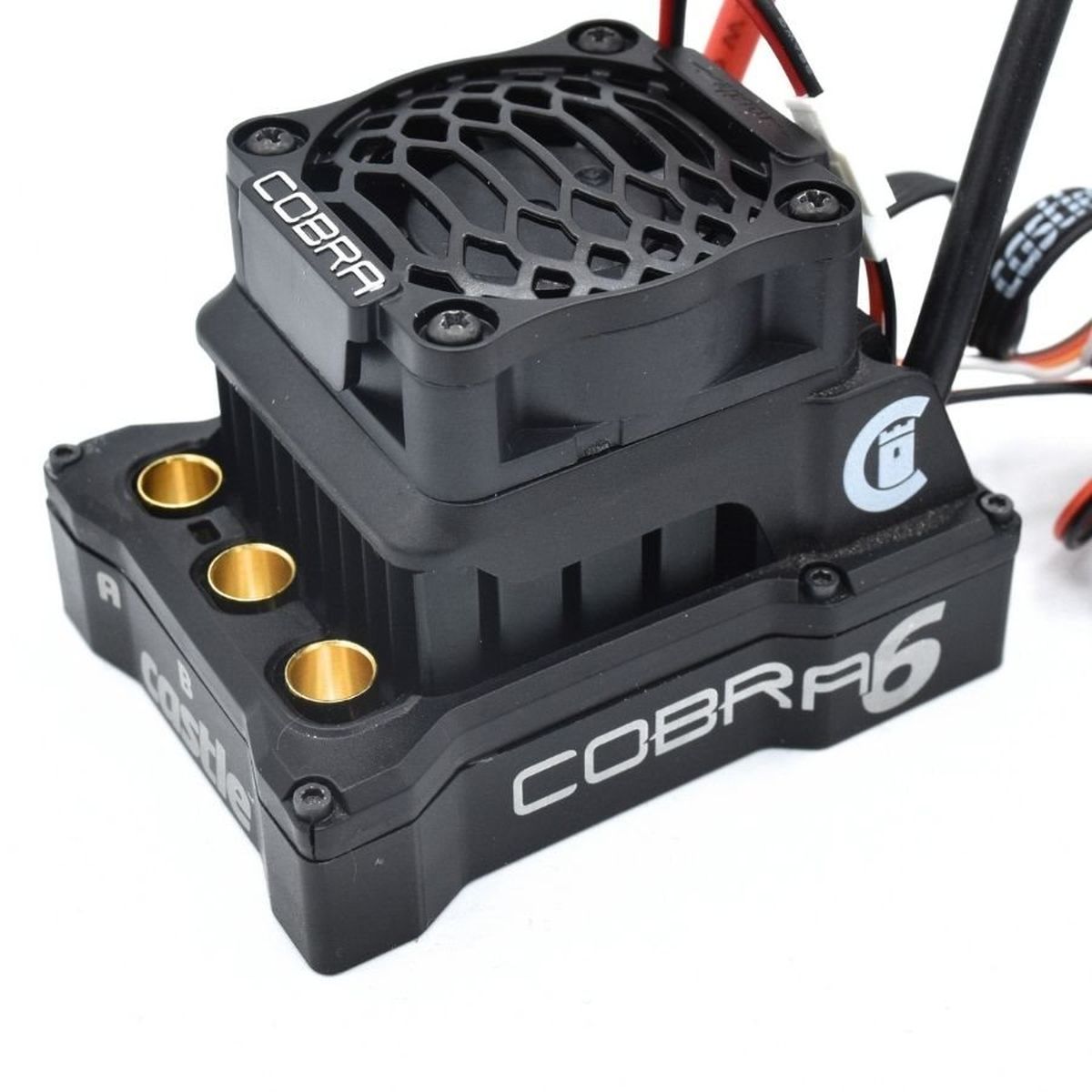

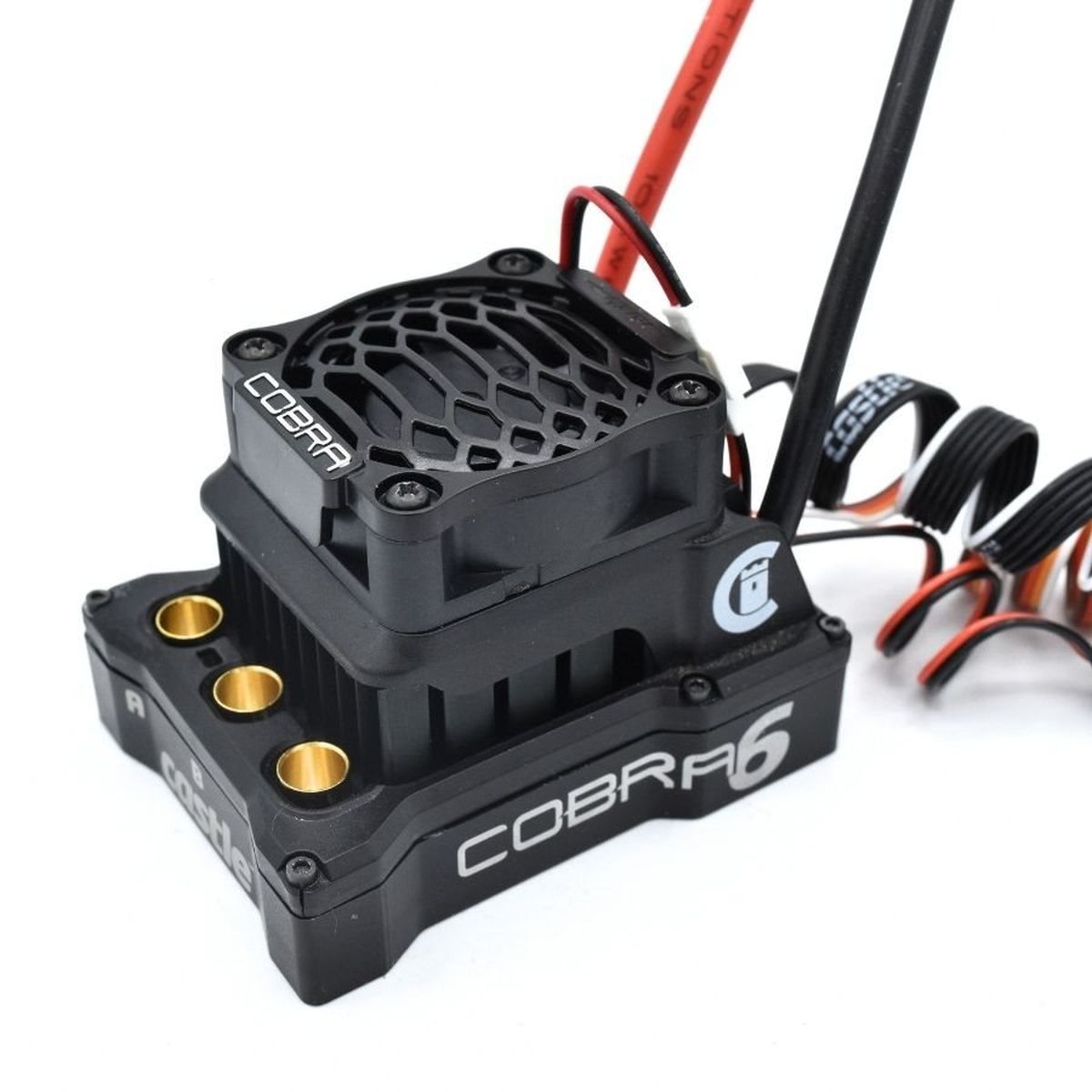

Building on the success of the COBRA 10 and COBRA 8, castle is excited to announce the release of the COBRA 6, engineered for 1/7th and 1/6th scale high-performance RC applications! The COBRA 6 is available to purchase as an ESC-only option or packaged with three Castle 4-POLE 12-SLOT motor options to overpower a wide range of 1/7th and 1/6th scale vehicles.
Note: The Cobra 6 is not designed for drag racing or high speed applications. It has built-in safety features that protects against aggressive setups and may limit power. The Ghost RC Cobra 8 ACE and Cobra 5 ACE are the recommended drag and speed run ESCs.
Note: The Cobra 6 is not designed for drag racing or high speed applications. It has built-in safety features that protects against aggressive setups and may limit power. The Ghost RC Cobra 8 ACE and Cobra 5 ACE are the recommended drag and speed run ESCs.
Includes:
- Cobra 6 ESC
- Castle Link V4 USB Adapter
- 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
Key Features:
- 32-Bit Processing power for smoother motor control and improved response time.
- Enhanced Data Logging includes: Double the maximum sample frequency of older generations. / 8x increased logging time of older generations. / Data point for ESC electrical motor timing. / Data point for acceleration via onboard accelerometer. / Looping feature prevents interruptions in data log recording. / Ability to download specific sessions.
- Additional tuning features include: Improved braking adjustability / Separate brake and reverse curves / Highly adjustable internal BEC. (5.0V - 8.0V adjustable in 0.1V increments)
- Access to tuning options and firmware updates for free with Castle Link V4 USB programmer included with purchase. Now with USB-C connector! (Requires Windows 10 or higher)
- Optional smartphone-based programming with the B-LINK Bluetooth Interface (sold separately) and the Castle Link 2 App on Google Play or Apple App Store.
- Mounting holes located in bottom of aluminum case for installation into vehicle.
Additional Features:
- SmartSense, Sensored Only and Brushed Motor Operation Modes
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
- Oversized factory equipped thermally controlled 40mm cooling fan
- Auxiliary wire functionality for "on-the-fly" adjustments using your transmitter
- Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
- Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
- Cobra 6 is proudly designed and manufactured in Olathe, KS USA and backed by Castle Creations' 1-year warranty
- Mounting holes located in bottom of aluminum case for installation into vehicle.
Specifications:
- Application Guidelines: 1:6th Scale vehicles weighing up to 25 lbs
- Input Voltage Range: MIN: 2S LiPo, MAX: 8S LiPo (33.6V)
- BEC Specifications: 5.5V to 8.0V adjustable in 0.1V increments (8A peak), default 5.5V
- Running Modes: Sensored, Sensorless and SmartSense when paired with a Castle 4-POLE 12-SLOT Sensored Motor.
- Brake: Proportional
- Reversible: Yes, but may be disabled for racing.
- On/Off Switch: Yes, waterproof
- Cooling Fan: Yes, factory equipped (40mm), fully removable** (see Product Use Statements below)
- Size (L x W x H): 2.73" x 2.13" x 1.85" (69.5mm x 54.1mm x 47mm)
- Weight (with wires): 5.75 oz. (163 grams)
- Connectors type: 6.5mm female bullets for motor connection
- Items Needed for Operation: A high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors, soldered to the battery leads.
- Operating environment: Waterproof design for all weather conditions
- Programmability: Fully programmable Castle feature set using the included Castle Link V4 USB adapter and freely downloadable Castle Link 2 Windows software, or the Castle Link iOS or Android app with B-LINK 2 Bluetooth Adapter (sold separately).
- Product Use Statements: Recommended battery capacity for 1:6th scale vehicles is 5000mah. / Castle recommends using 50C continuous discharge or higher LiPo batteries. / Surge ratings should never be used to determine a pack's suitability for a brushless application. / They recommend a high current connector designed for high-powered electric systems, rated for 120+ amps, such as Castle CC Bullet 6.5mm, CC Bullet 8.0mm, or 6.5mm Polarized Castle Connectors. / Applying voltages higher than 33.6V will cause irreparable damage to ESC; DO NOT RUN HV CELLS (above 4.2v/cell) WHEN RUNNING AT MAX CELL COUNT (8s). This will exceed the 33.6v rating and will damage the ESC and not be covered by the warranty. / Although the Cobra 6 is waterproof, it is not intended for operation while completely submerged in liquid. Always rinse the ESC with clean water after exposure to corrosives or dirt. / The cooling fan must be removed prior to driving in wet conditions. It is not waterproof. / Note: The Cobra 6 is not designed for use in extremely high-speed applications and drag setups, as such the Castle warranty does NOT cover failure when used in high speed or drag applications.
