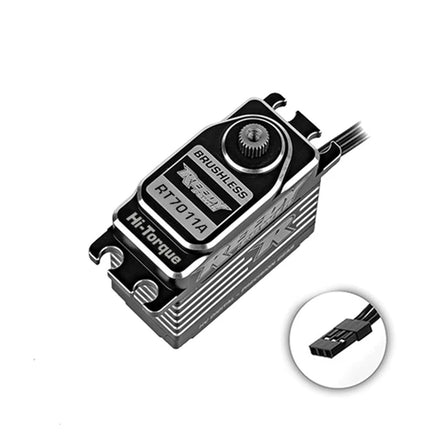

Team Associated - Reedy RTY7011A Brushless HI-Torque HV Servo

Reedy Power RT7011A, Brushless High-Torque HV Servo, #27180 Ideal for 1:8 and 1:10 racing, the Reedy Power RT70011A servo offers extreme torque, efficient power delivery and the durability of steel gears. Optimized for both steering and throttle/brake applications.

---

Features:

• High voltage
• Standard Size
• 25-tooth Spline
• Steel Gears
• Precision ball bearings
• Brushless motor
• Full CNC aluminum case with integrated heat sink
• High Speed: 0.11 - 0.16 sec/60 degrees (8.4V - 6.0V)
• Extreme Torque: 972.1 oz-in - 624.9 oz-in (8.4V - 6.0V

---

Specifications:

• Input (V): 6.0-8.4
• Motor: Brushless
• Speed: 6.0V - 0.16sec/60deg; 7.4V - 0.13sec/60deg; 8.4V - 0.11sec/60deg
• Torque (kg-cm/in-oz): 6.0V 45/625; 7.4V 55/763; 8.4V 70/972
• Dimensions: 40.3 x 20.2 x 37.6
• Weight (g): 81
• Spline: 25
