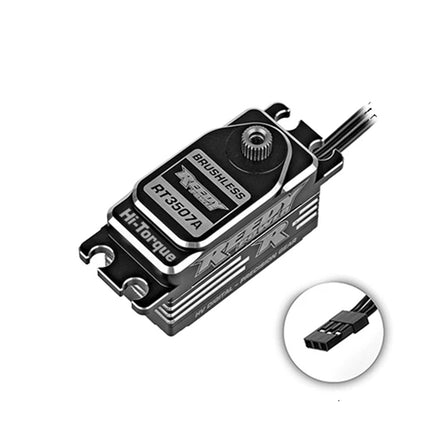

Team Associated - Reedy RT3507A LP Brushless Hi-Torque HV Servo

Designed for 1:10 racing, when space and weight-savings are at a premium, the Reedy Power RT3507A servo is the choice for off-road and on-road competition by offering a low-profile design, high speeds and maximum torque.

---

Features:

• High voltage
• Low-profile
• 25-tooth Spline
• Steel Gears
• Precision ball bearings
• Brushless motor
• Full CNC aluminum case with integrated heat sink
• High speed: .065 - 0.1 sec/60 degrees (8.4V - 6.0V)
• Extreme torque: 486.1 oz-in - 305.5 oz-in (8.4V - 6.0V)

---

Specifications:

• Input (V): 6.0-8.4
• Motor: Brushless
• Speed: 6.0V - 0.1sec/60deg; 7.4V - 0.08sec/60deg; 8.4V - 0.065sec/60deg
• Torque (kg-cm/in-oz): 6.0V 22/306; 7.4V 28/389; 8.4V 35/486
• Dimensions: 40.8 x 20.2 x 25.6
• Weight (g): 53
• Spline: 25
