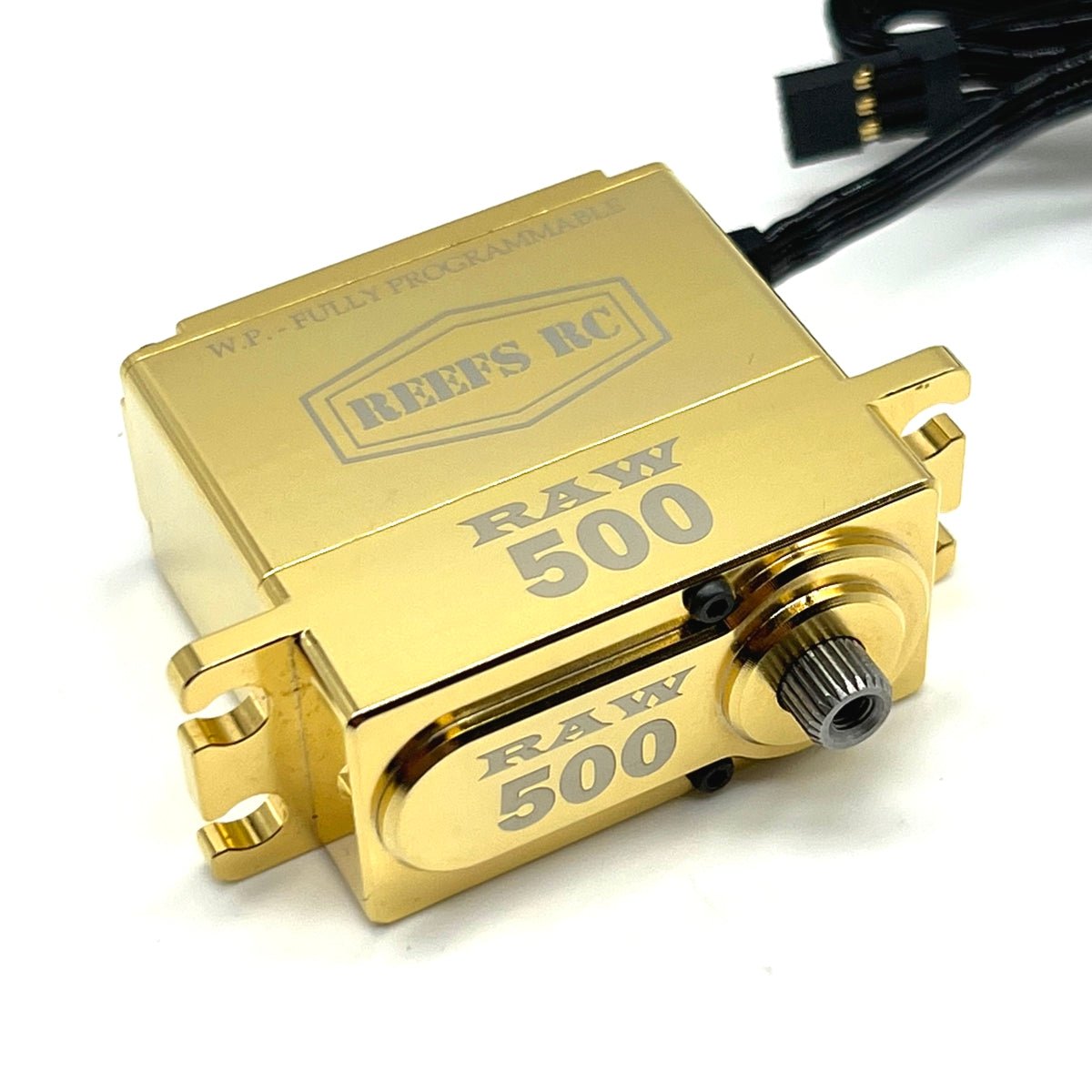

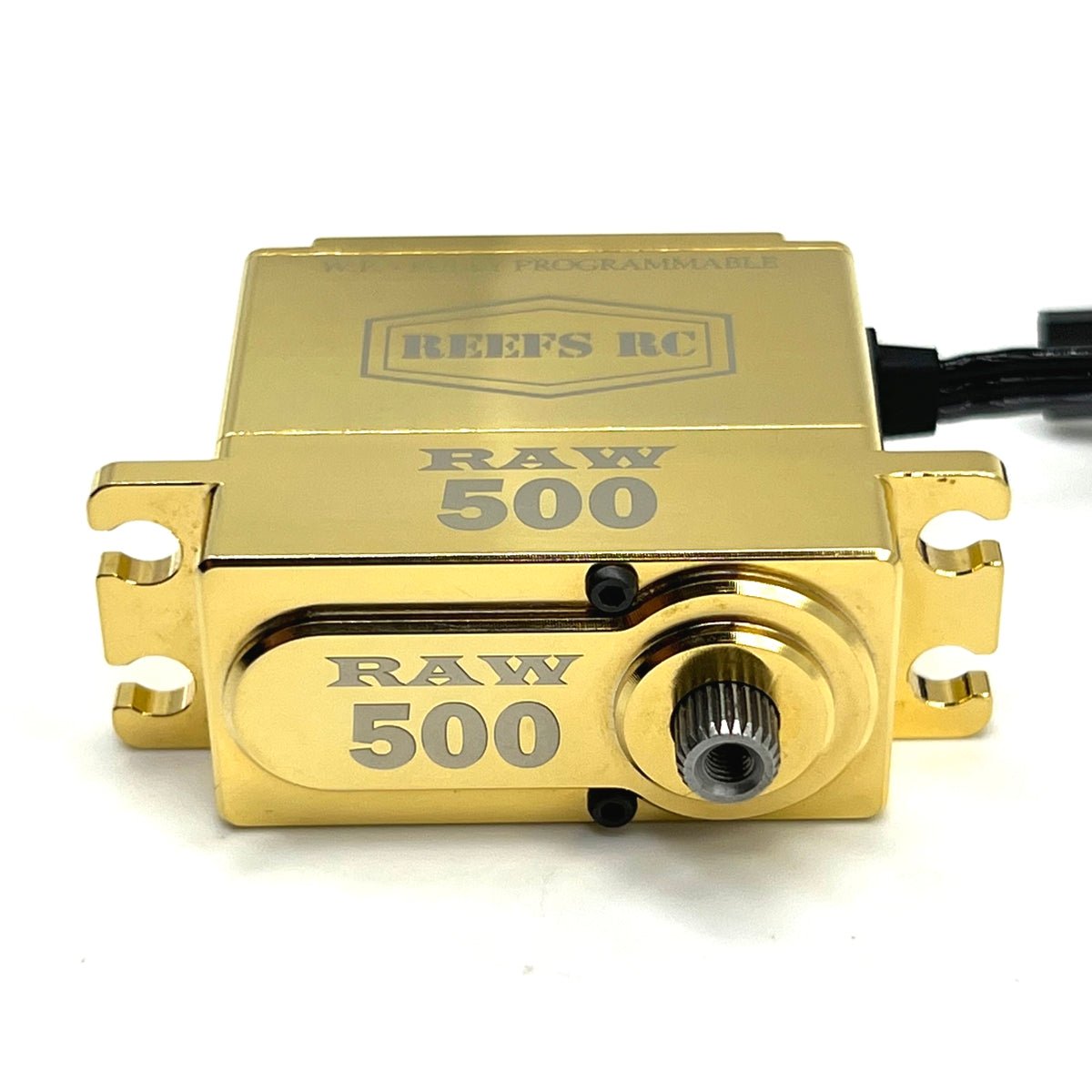

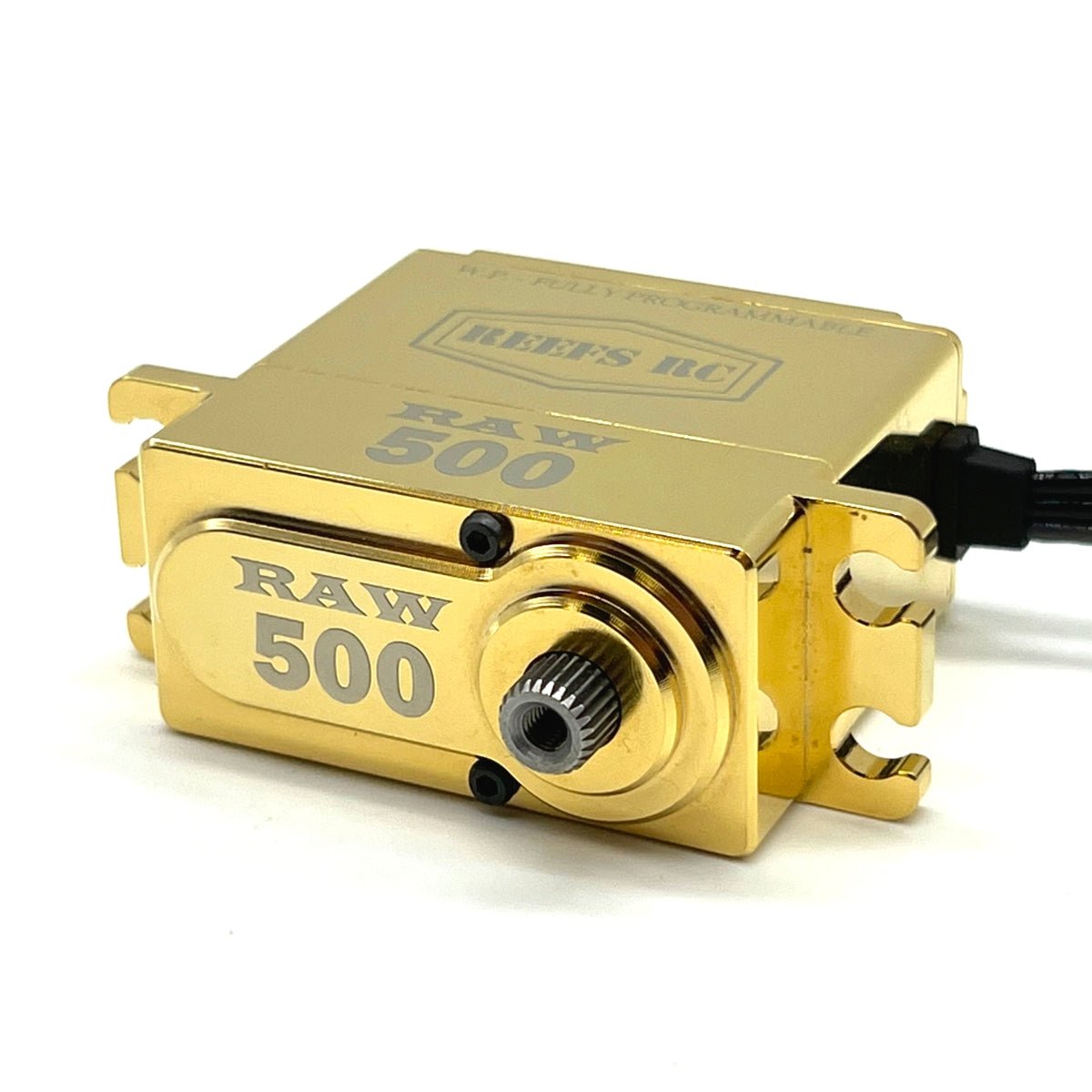

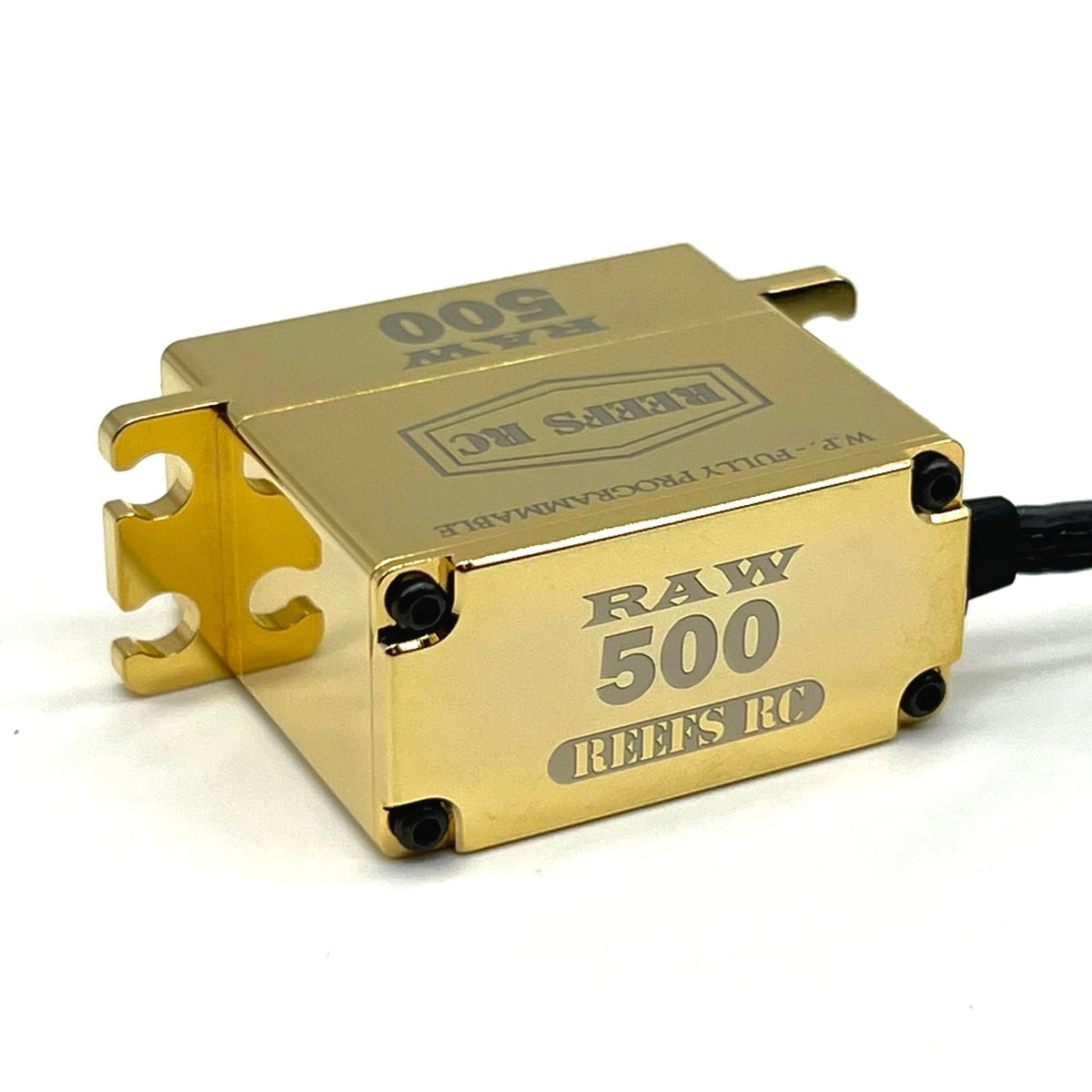

Reef's RC - RAW500 Brass Edition, High Torque, High Speed, Programmable, Brushless Servo (565/.08)

$ 179.99 $ 189.99
SKU: SEHREEFS159
Add To Wishlist
← Previous Product Next Product →

Features:
  • High Torque High Speed Brushless Servo
  • Submarine Waterproof: 7 Point Seals
  • Magnetic Angle Sensor
  • Pulse Width Modulation Control
  • Fully Programmable with REEFS Software (REEFS LINK required for Programming)

Specifications:
  • Input Voltage Range: 4.8 V - 8.4 V
  • Bearing Type: 2 Ball Bearings
  • Internal: Steel Gears
  • Spline: 25T / Dead Band Width: 2µs
  • Brass Casing with Ultra Finish
  • Weight: 5.2oz / 145.2G

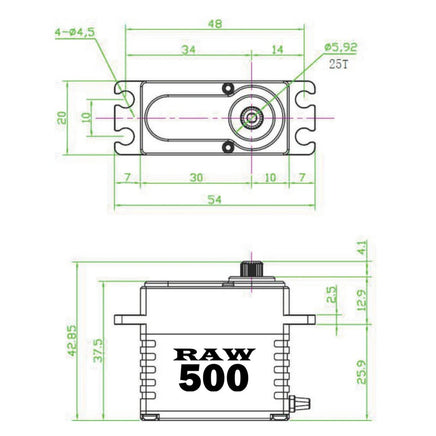

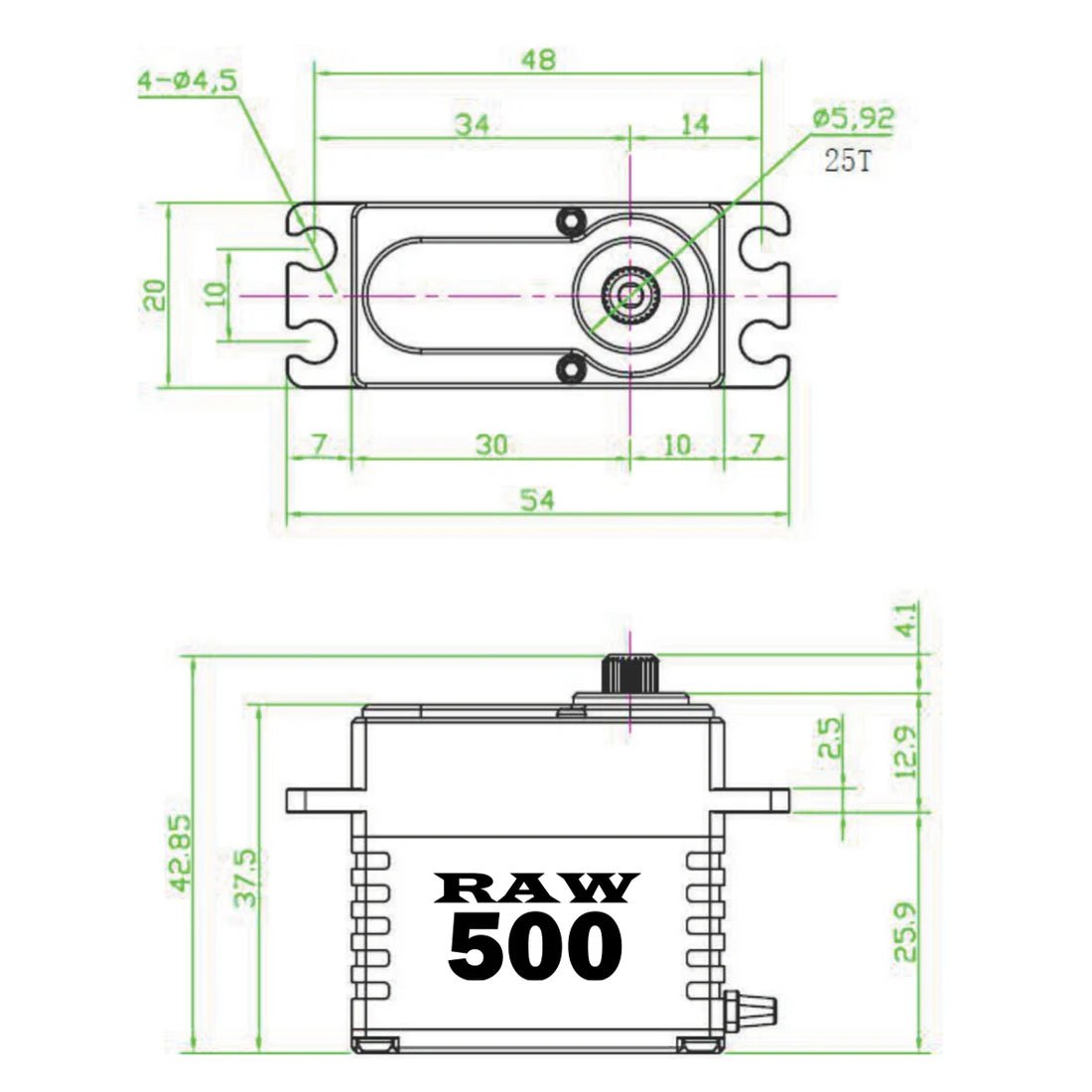

  • Dimension: 1.57 x .79 x 1.5 (LWH)
  • Torque: 450oz-in @ 6 V/ 500oz-in @7.4 V/ 565oz-in @8.4 V
  • Speed: .11sec @6 V/.095sec @7.4 V/.08sec @8.4 V
  • Unload Current: 320mA @ 6.0 V / 360mA @ 7.4 V / 400mA @ 8.4 V
  • Load Current: 4000mA @ 6.0 V / 4300mA @ 7.4 V / 4600mA @ 8.4 V
  • BEC not required, recommended for max performance
